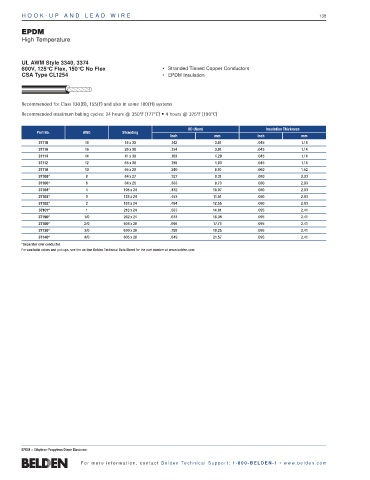

H O O K - U P A N D LE A D WIRE 138

EPDM
High Temperature

UL AWM Style 3340, 3374
600V, 125°C Flex, 150°C No Flex • Stranded Tinned Copper Conductors
CSA Type CL1254 • EPDM Insulation

Recommended for Class 130(B), 155(F) and also in some 180(H) systems
Recommended maximum baking cycles: 24 hours @ 350°F (177°C) • 4 hours @ 375°F (190°C)

OD (Nom) Insulation Thickness
Part No. AWG Stranding
Inch mm Inch mm
37118 18 16 x 30 .142 3.61 .045 1.14
37116 16 26 x 30 .154 3.91 .045 1.14
37114 14 41 x 30 .169 4.29 .045 1.14
37112 12 65 x 30 .190 4.83 .045 1.14
37110 10 65 x 28 .240 6.10 .060 1.52
37108* 8 84 x 27 .327 8.31 .080 2.03
37106* 6 84 x 25 .383 9.73 .080 2.03
37104* 4 105 x 24 .432 10.97 .080 2.03
37103* 3 133 x 24 .453 11.51 .080 2.03
37102* 2 163 x 24 .494 12.55 .080 2.03
37101* 1 210 x 24 .583 14.81 .095 2.41
37190* 1/0 262 x 24 .633 16.08 .095 2.41
37100* 2/0 504 x 26 .698 17.73 .095 2.41
37130* 3/0 630 x 26 .758 19.25 .095 2.41
37140* 4/0 805 x 26 .849 21.57 .095 2.41
*Separator over conductor.
For available colors and put-ups, see the on-line Belden Technical Data Sheet for the part number at www.belden.com

EPDM = Ethylene-Propylene Diene Elastomer
