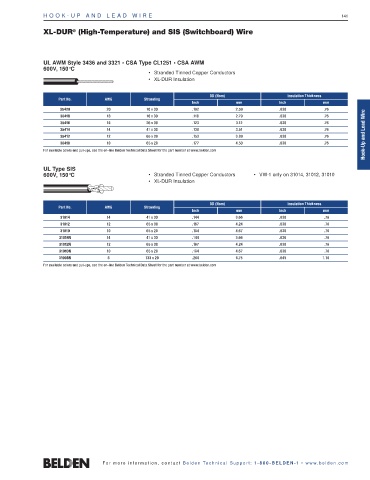

H O O K - U P A N D LE A D WIRE 141

®
XL-DUR (High-Temperature) and SIS (Switchboard) Wire

UL AWM Style 3436 and 3321 • CSA Type CL1251 • CSA AWM
600V, 150°C
• Stranded Tinned Copper Conductors
• XL-DUR Insulation

OD (Nom) Insulation Thickness
Part No. AWG Stranding
Inch mm Inch mm
35420 20 10 x 30 .102 2.59 .030 .76
Hook-Up and Lead Wire
35418 18 16 x 30 .110 2.79 .030 .76
35416 16 26 x 30 .123 3.12 .030 .76
35414 14 41 x 30 .138 3.51 .030 .76
35412 12 65 x 30 .153 3.89 .030 .76
35410 10 65 x 28 .177 4.50 .030 .76
For available colors and put-ups, see the on-line Belden Technical Data Sheet for the part number at www.belden.com

UL Type SIS
600V, 150°C • Stranded Tinned Copper Conductors • VW-1 only on 31014, 31012, 31010
• XL-DUR Insulation

OD (Nom) Insulation Thickness
Part No. AWG Stranding
Inch mm Inch mm
31014 14 41 x 30 .144 3.66 .030 .76
31012 12 65 x 30 .167 4.24 .030 .76
31010 10 65 x 28 .184 4.67 .030 .76
31014N 14 41 x 30 .144 3.66 .030 .76
31012N 12 65 x 30 .167 4.24 .030 .76
31010N 10 65 x 28 .184 4.67 .030 .76
31008N 8 133 x 29 .268 6.75 .045 1.14
For available colors and put-ups, see the on-line Belden Technical Data Sheet for the part number at www.belden.com
