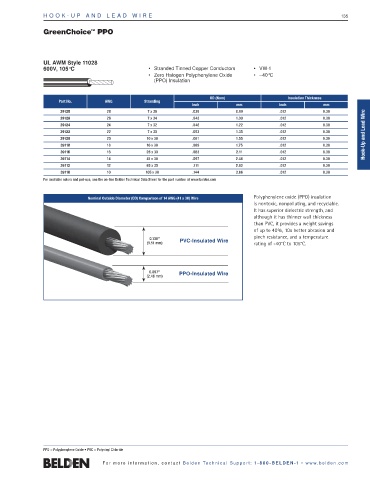

H O O K - U P A N D LE A D WIRE 135

™
GreenChoice PPO

UL AWM Style 11028
600V, 105°C • Stranded Tinned Copper Conductors • VW-1
• Zero Halogen Polyphenylene Oxide • –40°C
(PPO) Insulation

OD (Nom) Insulation Thickness
Part No. AWG Stranding
Inch mm Inch mm
39128 28 7 x 36 .039 0.99 .012 0.30
39126 26 7 x 34 .043 1.09 .012 0.30
39124 24 7 x 32 .048 1.22 .012 0.30
39122 22 7 x 30 .053 1.35 .012 0.30 Hook-Up and Lead Wire
39120 20 10 x 30 .061 1.55 .012 0.30
39118 18 16 x 30 .069 1.75 .012 0.30
39116 16 26 x 30 .083 2.11 .012 0.30
39114 14 41 x 30 .097 2.46 .012 0.30
39112 12 65 x 30 .111 2.82 .012 0.30
39110 10 105 x 30 .144 3.66 .012 0.30
For available colors and put-ups, see the on-line Belden Technical Data Sheet for the part number at www.belden.com

Nominal Outside Diameter (OD) Comparison of 14 AWG (41 x 30) Wire Polyphenylene oxide (PPO) insulation
is nontoxic, nonpolluting, and recyclable.
It has superior dielectric strength, and
although it has thinner wall thickness
than PVC, it provides a weight savings
of up to 40%, 10x better abrasion and
0.138" pinch resistance, and a temperature
(3.51 mm) PVC-Insulated Wire rating of -40°C to 105°C.

0.097" PPO-Insulated Wire
(2.46 mm)

PPO = Polyphenylene Oxide • PVC = Polyvinyl Chloride
