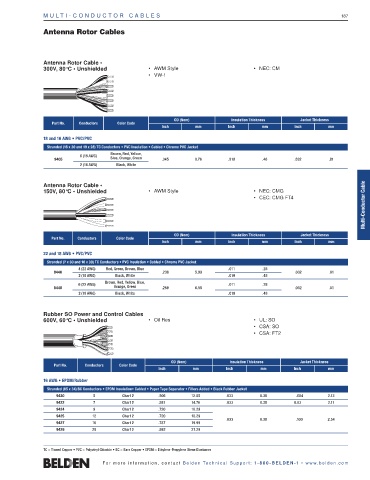

MUL T I - COND UC T O R C A BL E S 187

Antenna Rotor Cables

Antenna Rotor Cable •
300V, 80°C • Unshielded • AWM Style • NEC: CM
• VW-1

OD (Nom) Insulation Thickness Jacket Thickness
Part No. Conductors Color Code
Inch mm Inch mm Inch mm
18 and 16 AWG • PVC/PVC
Stranded (16 x 30 and 19 x 28) TC Conductors • PVC Insulation • Cabled • Chrome PVC Jacket
Brown, Red, Yellow,
6 (18 AWG)
9405 Blue, Orange, Green .345 8.76 .019 .48 .032 .81
2 (16 AWG) Black, White

Multi-Conductor Cable
Antenna Rotor Cable •
150V, 80°C • Unshielded • AWM Style • NEC: CMG
• CEC: CMG FT4

OD (Nom) Insulation Thickness Jacket Thickness
Part No. Conductors Color Code
Inch mm Inch mm Inch mm
22 and 18 AWG • PVC/PVC
Stranded (7 x 30 and 16 x 30) TC Conductors • PVC Insulation • Cabled • Chrome PVC Jacket
4 (22 AWG) Red, Green, Brown, Blue .011 .28
8446 .236 5.99 .032 .81
2 (18 AWG) Black, White .019 .48
Brown, Red, Yellow, Blue,
6 (22 AWG) .011 .28
8448 Orange, Green .259 6.58 .032 .81
2 (18 AWG) Black, White .019 .48

Rubber SO Power and Control Cables
600V, 60°C • Unshielded • Oil Res • UL: SO
• CSA: SO
• CSA: FT2

OD (Nom) Insulation Thickness Jacket Thickness
Part No. Conductors Color Code
Inch mm Inch mm Inch mm
16 AWG • EPDM/Rubber
Stranded (65 x 34) BC Conductors • EPDM Insulation• Cabled • Paper Tape Separator • Fillers Added • Black Rubber Jacket
9420 5 Chart 2 .506 12.85 .033 8.38 .084 2.13
9422 7 Chart 2 .581 14.76 .033 8.38 0.83 2.11
9424 9 Chart 2 .720 18.29
9425 12 Chart 2 .720 18.29
.033 8.38 .100 2.54
9427 16 Chart 2 .787 19.99
9429 20 Chart 2 .862 21.29

TC = Tinned Copper • PVC = Polyvinyl Chloride • BC = Bare Copper • EPDM = Ethylene-Propylene Diene Elastomer

Fo r m o r e i n fo r m at i o n, c o n t a c t Be ld e n Te ch n i ca l S u ppo r t : 1- 8 0 0 - B E L D E N -1 • www. b e l d e n . c o m
