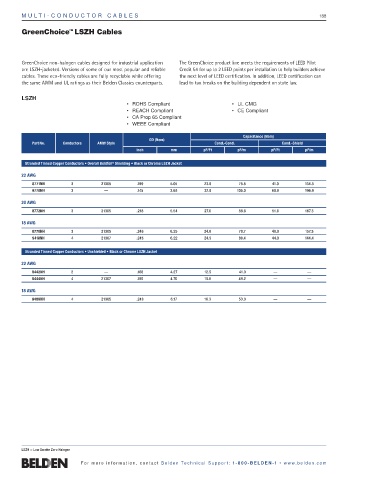

MUL T I - COND UC T O R C A BL E S 188

™
GreenChoice LSZH Cables

GreenChoice non-halogen cables designed for industrial application The GreenChoice product line meets the requirements of LEED Pilot
are LSZH-jacketed. Versions of some of our most popular and reliable Credit 54 for up to 2 LEED points per installation to help builders achieve
cables. These eco-friendly cables are fully recyclable while offering the next level of LEED certification. In addition, LEED certification can
the same AWM and UL ratings as their Belden Classics counterparts. lead to tax breaks on the building dependent on state law.

LSZH
• ROHS Compliant • UL CMG
• REACH Compliant • CE Compliant
• CA Prop 65 Compliant
• WEEE Compliant

Capacitance (Nom)
OD (Nom)
Part No. Conductors AMW Style Cond.-Cond. Cond.-Shield
Inch mm pF/Ft pF/m pF/Ft pF/m
Stranded Tinned Copper Conductors • Overall Beldfoil ® Shielding • Black or Chrome LSZH Jacket

22 AWG
8771NH 3 21305 .199 5.05 23.0 75.5 41.0 134.5
9770NH 3 — .145 3.68 32.0 105.0 60.0 196.9
20 AWG
8772NH 3 21305 .218 5.54 27.0 88.6 51.0 167.3

18 AWG
8770NH 3 21305 .246 6.25 24.0 78.7 48.0 157.5
9418NH 4 21307 .245 6.22 24.5 80.4 44.0 144.4

Stranded Tinned Copper Conductors • Unshielded • Black or Chrome LSZH Jacket
22 AWG
8442NH 2 — .168 4.27 12.5 41.0 — —
8444NH 4 21307 .185 4.70 15.0 49.2 — —

18 AWG
8489NH 4 21305 .243 6.17 16.3 53.3 — —

LSZH = Low Smoke Zero Halogen
