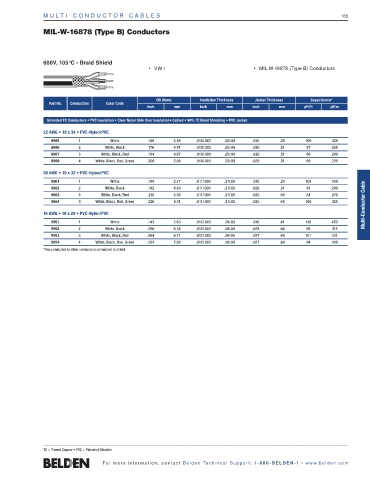

MUL T I - COND UC T O R C A BL E S 185

MIL-W-16878 (Type B) Conductors

600V, 105°C • Braid Shield
• VW-1 • MIL-W-16878 (Type B) Conductors

OD (Nom) Insulation Thickness Jacket Thickness Capacitance*
Part No. Conductors Color Code
Inch mm Inch mm Inch mm pF/Ft pF/m
Stranded TC Conductors • PVC Insulation • Clear Nylon Skin Over Insulation• Cabled • 90% TC Braid Shielding • PVC Jacket

22 AWG • 19 x 34 • PVC-Nylon/PVC
9965 1 White .100 2.54 .010/.003 .25/.08 .010 .25 100 328
9966 2 White, Black .176 4.47 .010/.003 .25/.08 .020 .51 87 285
9967 3 White, Black, Red .184 4.67 .010/.003 .25/.08 .020 .51 88 289
9968 4 White, Black, Red, Green .200 5.08 .010/.003 .25/.08 .020 .51 69 226
20 AWG • 19 x 32 • PVC-Nylon/PVC
9961 1 White .109 2.77 .011/.003 .27/.08 .010 .25 103 388
Multi-Conductor Cable
9962 2 White, Black .192 4.88 .011/.003 .27/.08 .020 .51 91 299
9963 3 White, Black, Red .210 5.33 .011/.003 .27/.08 .025 .64 84 276
9964 4 White, Black, Red, Green .226 5.74 .011/.003 .27/.08 .025 .64 100 328

16 AWG • 19 x 29 • PVC-Nylon/PVC
9951 1 White .143 3.63 .012/.003 .30/.08 .016 .41 138 453
9952 2 White, Black .250 6.35 .012/.003 .30/.08 .025 .64 95 312
9953 3 White, Black, Red .264 6.71 .012/.003 .30/.08 .027 .69 101 331
9954 4 White, Black, Red, Green .291 7.39 .012/.003 .30/.08 .027 .69 94 308
*One conductor to other conductors connected to shield.

TC = Tinned Copper • PVC = Polyvinyl Chloride

Fo r m o r e i n fo r m at i o n, c o n t a c t Be ld e n Te ch n i ca l S u ppo r t : 1- 8 0 0 - B E L D E N -1 • www. b e l d e n . c o m
