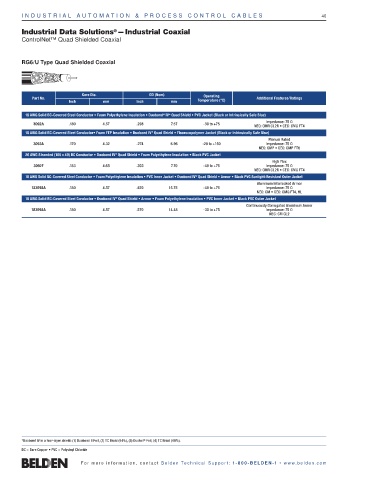

I N DUS T R I A L A U T O M A TI O N & P R O C E S S C O NTRO L C A B L E S 40

®
Industrial Data Solutions — Industrial Coaxial
ControlNet™ Quad Shielded Coaxial

RG6/U Type Quad Shielded Coaxial

Core Dia. OD (Nom) Operating
Part No. Additional Features/Ratings
Inch mm Inch mm Temperature (°C)
18 AWG Solid BC-Covered Steel Conductor • Foam Polyethylene Insulation • Duobond ® IV* Quad Shield • PVC Jacket (Black or Intrinsically Safe Blue)
Impedance: 75 Ω
3092A .180 4.57 .298 7.57 -30 to +75
NEC: CMR CL2R • CEC: CMG FT4
18 AWG Solid BC-Covered Steel Conductor• Foam FEP Insulation • Duobond IV* Quad Shield • Fluorocopolymer Jacket (Black or Intrinsically Safe Blue)
Plenum Rated
3093A .170 4.32 .274 6.96 -20 to +150 Impedance: 75 Ω
NEC: CMP • CEC: CMP FT6
20 AWG Stranded (105 x 40) BC Conductor • Duobond IV* Quad Shield • Foam Polyethylene Insulation • Black PVC Jacket
High Flex
3092F .183 4.65 .303 7.70 -40 to +75 Impedance: 75 Ω
NEC: CMR CL2R • CEC: CMG FT4
18 AWG Solid BC-Covered Steel Conductor • Foam Polyethylene Insulation • PVC Inner Jacket • Duobond IV* Quad Shield • Armor • Black PVC Sunlight-Resistant Outer Jacket
Aluminum Interlocked Armor
123092A .180 4.57 .620 15.75 -40 to +75 Impedance: 75 Ω
NEC: CM • CEC: CMG FT4, HL
18 AWG Solid BC-Covered Steel Conductor • Duobond IV* Quad Shield • Armor • Foam Polyethylene Insulation • PVC Inner Jacket • Black PVC Outer Jacket
Continuously Corrugated Aluminum Armor
183092A .180 4.57 .570 14.48 -30 to +75 Impedance: 75 Ω
NEC: CM CL2

*Duobond IV is a four-layer shield: (1) Duobond II Foil, (2) TC Braid (94%), (3) Duofoil ® Foil, (4) TC Braid (90%).
BC = Bare Copper • PVC = Polyvinyl Chloride
