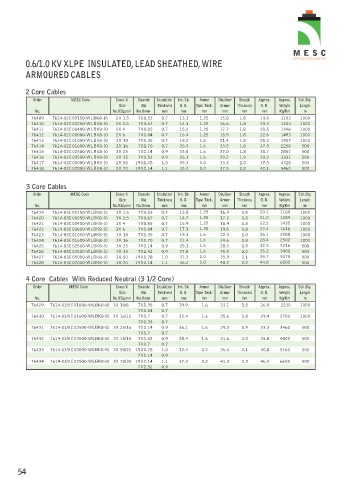

0.6/1.0 KV XLPE INSULATED, LEAD SHEATHED, WIRE

ARMOURED CABLES

2 Core Cables
Order MESC Code Cores X Strandx Insulation Inn. Sh. Armor Dia.Over Sheath Approx. Approx. Std. Dly.
Size Dia Thickness O. D. Tape Thck. Armor Thickness O. D. Weight Length
No. No.XSq.mm No.Xmm mm mm mm mm mm mm Kg/Km m
76409 7614-02C00150-WLBK8-I0 2X 1.5 7X0.53 0.7 13.3 1.25 15.8 1.8 19.6 1103 1000
76410 7614-02C00250-WLBK8-I0 2X 2.5 7X0.67 0.7 14.1 1.25 16.6 1.8 20.3 1204 1000
76411 7614-02C00400-WLBK8-I0 2X 4 7X0.85 0.7 15.2 1.25 17.7 1.8 21.5 1346 1000
76412 7614-02C00600-WLBK8-I0 2X 6 7X1.04 0.7 16.4 1.25 18.9 1.8 22.6 1493 1000
76413 7614-02C01000-WLBK8-I0 2X 10 7X1.35 0.7 18.2 1.6 21.4 1.8 25.2 1907 1000
76414 7614-02C01600-WLBK8-I0 2X 16 7X1.70 0.7 20.3 1.6 23.5 1.8 27.3 2258 500
76415 7614-02C02500-WLBK8-I0 2X 25 7X2.14 0.9 23.8 1.6 27.0 1.8 30.7 2857 500
76416 7614-02C03500-WLBK8-I0 2X 35 7X2.52 0.9 26.1 1.6 29.2 1.9 33.2 3331 500
76417 7614-02C05000-WLBK8-I0 2X 50 19X1.78 1.0 29.3 2.0 33.3 2.0 37.5 4328 500
76418 7614-02C07000-WLBK8-I0 2X 70 19X2.14 1.1 33.3 2.0 37.5 2.2 42.1 5460 500

3 Core Cables
Order MESC Code Cores X Strandx Insulation Inn. Sh. Armor Dia.Over Sheath Approx. Approx. Std. Dly.
Size Dia Thickness O. D. Tape Thck. Armor Thickness O. D. Weight Length
No. No.XSq.mm No.Xmm mm mm mm mm mm mm Kg/Km m
76419 7614-03C00150-WLBK8-I0 3X 1.5 7X0.53 0.7 13.8 1.25 16.3 1.8 20.1 1160 1000
76420 7614-03C00250-WLBK8-I0 3X 2.5 7X0.67 0.7 14.7 1.25 17.2 1.8 21.0 1284 1000
76421 7614-03C00400-WLBK8-I0 3X 4 7X0.85 0.7 15.9 1.25 18.4 1.8 22.2 1435 1000
76422 7614-03C00600-WLBK8-I0 3X 6 7X1.04 0.7 17.1 1.25 19.6 1.8 23.4 1616 1000
76423 7614-03C01000-WLBK8-I0 3X 10 7X1.35 0.7 19.1 1.6 22.3 1.8 26.1 2088 1000
76424 7614-03C01600-WLBK8-I0 3X 16 7X1.70 0.7 21.4 1.6 24.6 1.8 28.4 2502 1000
76425 7614-03C02500-WLBK8-I0 3X 25 7X2.14 0.9 25.1 1.6 28.3 1.9 32.3 3216 500
76426 7614-03C03500-WLBK8-I0 3X 35 7X2.52 0.9 27.8 1.6 31.0 2.0 35.2 3900 500
76427 7614-03C05000-WLBK8-I0 3X 50 19X1.78 1.0 31.3 2.0 35.3 2.1 39.7 5070 500
76428 7614-03C07000-WLBK8-I0 3X 70 19X2.14 1.1 36.2 2.0 40.2 2.2 44.8 6501 500

4 Core Cables With Reduced Neutral (3 1/2 Core)
Order MESC Code Cores X Strandx Insulation Inn. Sh. Armor Dia.Over Sheath Approx. Approx. Std. Dly.
Size Dia Thickness O. D. Tape Thck. Armor Thickness O. D. Weight Length
No. No.XSq.mm No.Xmm mm mm mm mm mm mm Kg/Km m
76429 7614-03/5C01000-WLBK8-I0 3X 10/6 7X1.35 0.7 19.9 1.6 23.1 1.8 26.9 2230 1000
7X1.04 0.7
76430 7614-03/5C01600-WLBK8-I0 3X 16/10 7X1.7 0.7 22.4 1.6 25.6 1.8 29.4 2700 1000
7X1.35 0.7
76431 7614-03/5C02500-WLBK8-I0 3X 25/16 7X2.14 0.9 26.1 1.6 29.3 1.9 33.3 3460 500
7X1.7 0.7
76432 7614-03/5C03500-WLBK8-I0 3X 35/16 7X2.52 0.9 28.4 1.6 31.6 2.0 35.8 4000 500
7X1.7 0.7
76433 7614-03/5C05000-WLBK8-I0 3X 50/25 19X1.78 1.0 32.4 0.2 36.4 2.1 40.8 5160 500
7X2.14 0.9
76434 7614-03/5C07000-WLBK8-I0 3X 70/35 19X2.14 1.1 37.3 0.2 41.3 2.3 46.2 6600 500
7X2.52 0.9
