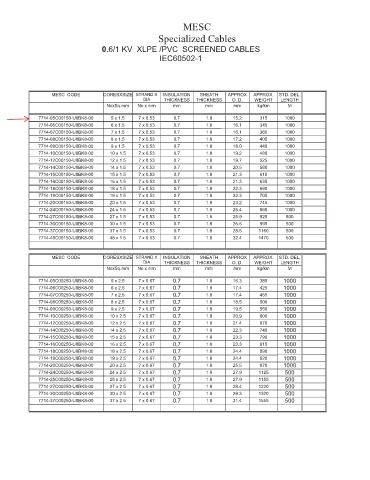

Page 61 - Power Cables Catalogue.pdf

MESC

Specialized Cables
0.6/1 KV XLPE /PVC SCREENED CABLES
IEC60502-1

MESC CODE CORESXSIZE STRAND X INSULATION SHEATH APPROX APPROX. STD. DEL.
DIA THICKNESS THICKNESS O. D. WEIGHT LENGTH
NoxSq.mm No x mm mm mm mm kg/km M

7714-05C00150-U0BK8-00 5 x 1.5 7 x 0.53 0.7 1.8 15.2 315 1000
7714-06C00150-U0BK8-00 6 x 1.5 7 x 0.53 0.7 1.8 16.1 345 1000
7714-07C00150-U0BK8-00 7 x 1.5 7 x 0.53 0.7 1.8 16.1 365 1000
7714-08C00150-U0BK8-00 8 x 1.5 7 x 0.53 0.7 1.8 17.2 405 1000
7714-09C00150-U0BK8-00 9 x 1.5 7 x 0.53 0.7 1.8 18.0 440 1000
7714-10C00150-U0BK8-00 10 x 1.5 7 x 0.53 0.7 1.8 19.2 480 1000
7714-12C00150-U0BK8-00 12 x 1.5 7 x 0.53 0.7 1.8 19.7 525 1000
7714-14C00150-U0BK8-00 14 x 1.5 7 x 0.53 0.7 1.8 20.5 580 1000
7714-15C00150-U0BK8-00 15 x 1.5 7 x 0.53 0.7 1.8 21.3 615 1000
7714-16C00150-U0BK8-00 16 x 1.5 7 x 0.53 0.7 1.8 21.3 635 1000
7714-18C00150-U0BK8-00 18 x 1.5 7 x 0.53 0.7 1.8 22.3 690 1000
7714-19C00150-U0BK8-00 19 x 1.5 7 x 0.53 0.7 1.8 22.3 705 1000
7714-20C00150-U0BK8-00 20 x 1.5 7 x 0.53 0.7 1.8 23.2 745 1000
7714-24C00150-U0BK8-00 24 x 1.5 7 x 0.53 0.7 1.8 25.4 860 1000
7714-27C00150-U0BK8-00 27 x 1.5 7 x 0.53 0.7 1.8 25.9 925 500
7714-30C00150-U0BK8-00 30 x 1.5 7 x 0.53 0.7 1.8 26.6 995 500
7714-37C00150-U0BK8-00 37 x 1.5 7 x 0.53 0.7 1.8 28.5 1160 500
7714-48C00150-U0BK8-00 48 x 1.5 7 x 0.53 0.7 1.8 32.4 1470 500

MESC CODE CORESXSIZE STRAND X INSULATION SHEATH APPROX APPROX. STD. DEL.
DIA THICKNESS THICKNESS O. D. WEIGHT LENGTH
NoxSq.mm No x mm mm mm mm kg/km M

7714-05C00250-U0BK8-00 5 x 2.5 7 x 0.67 0.7 1.8 16.3 385 1000
7714-06C00250-U0BK8-00 6 x 2.5 7 x 0.67 0.7 1.8 17.4 425 1000
7714-07C00250-U0BK8-00 7 x 2.5 7 x 0.67 0.7 1.8 17.4 455 1000
7714-08C00250-U0BK8-00 8 x 2.5 7 x 0.67 0.7 1.8 18.5 500 1000
7714-09C00250-U0BK8-00 9 x 2.5 7 x 0.67 0.7 1.8 19.5 550 1000
7714-10C00250-U0BK8-00 10 x 2.5 7 x 0.67 0.7 1.8 20.9 600 1000
7714-12C00250-U0BK8-00 12 x 2.5 7 x 0.67 0.7 1.8 21.4 670 1000
7714-14C00250-U0BK8-00 14 x 2.5 7 x 0.67 0.7 1.8 22.3 740 1000
7714-15C00250-U0BK8-00 15 x 2.5 7 x 0.67 0.7 1.8 23.3 790 1000
7714-16C00250-U0BK8-00 16 x 2.5 7 x 0.67 0.7 1.8 23.3 815 1000
7714-18C00250-U0BK8-00 18 x 2.5 7 x 0.67 0.7 1.8 24.4 890 1000
7714-19C00250-U0BK8-00 19 x 2.5 7 x 0.67 0.7 1.8 24.4 920 1000
7714-20C00250-U0BK8-00 20 x 2.5 7 x 0.67 0.7 1.8 25.5 970 1000
7714-24C00250-U0BK8-00 24 x 2.5 7 x 0.67 0.7 1.8 27.9 1125 500
7714-25C00250-U0BK8-00 25 x 2.5 7 x 0.67 0.7 1.8 27.9 1155 500
7714-27C00250-U0BK8-00 27 x 2.5 7 x 0.67 0.7 1.8 28.4 1220 500
7714-30C00250-U0BK8-00 30 x 2.5 7 x 0.67 0.7 1.8 29.3 1320 500
7714-37C00250-U0BK8-00 37 x 2.5 7 x 0.67 0.7 1.8 31.4 1555 500
