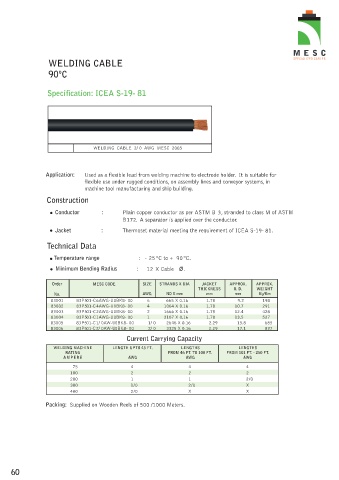

Page 66 - Power Cables Catalogue.pdf

WELDING CABLE

90ºC

Specification: ICEA S-19- 81

WELDING CABLE 2/ 0 AWG MESC 2005

Application: Used as a flexible lead from welding machine to electrode holder. It is suitable for
flexible use under rugged conditions, on assembly lines and conveyor systems, in
machine tool manufacturing and ship building.
Construction

Conductor : Plain copper conductor as per ASTM B 3, stranded to class M of ASTM
B172. A separator is applied over the conductor.
Jacket : Thermoset material meeting the requirement of ICEA S-19- 81.

Technical Data

Temperature range : - 25ºC to + 90ºC.
Minimum Bending Radius : 12 X Cable Ø .

Order MESC CODE SIZE STRANDS X DIA JACKET APPROX. APPROX.
THICKNESS O. D. WEIGHT
No. AWG NO X mm mm mm Kg/Km
83001 83P501-C6AWG-U0BK8- 00 6 665 X 0.16 1.78 9.2 198
83002 83P501-C4AWG-U0BK8- 00 4 1064 X 0.16 1.78 10.7 291
83003 83P501-C2AWG-U0BK8- 00 2 1666 X 0.16 1.78 12.4 428
83004 83P501-C1AWG-U0BK8- 00 1 2107 X 0.16 1.78 13.5 527
83005 83P501-C1/ 0AW-U0BK8- 00 1/ 0 2646 X 0.16 2.29 15.8 685
83006 83P501-C2/ 0AW-U0BK8- 00 2/ 0 3325 X 0.16 2.29 17.1 837
Current Carrying Capacity
WELDING MACHINE LENGTH UPTO 45 FT. LENGTHS LENGTHS
RATING FROM 46 FT. TO 100 FT. FROM 101 FT. - 250 FT.
AMPERE AWG AWG AWG
7 5 4 4 4
1 0 0 2 2 2
2 0 0 1 1 0 / 2
3 0 0 0 / 1 0 / 2 X
4 0 0 0 / 2 X X

Packing: Supplied on Wooden Reels of 500 /1000 Meters.

60
