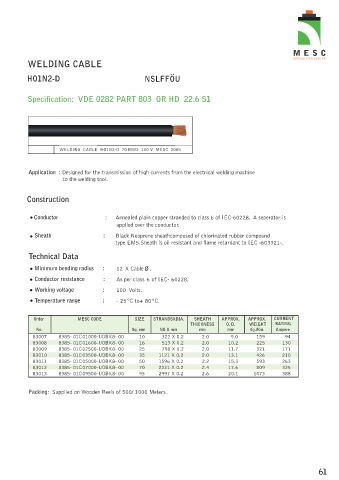

WELDING CABLE
..
HO1N2-D NSLFFOU

Specification: VDE 0282 PART 803 OR HD 22.6 S1

WELDING CABLE HO1N2-D 70 MM2 100 V MESC 2005

Application : Designed for the transmission of high currents from the electrical welding machine
to the welding tool.

Construction

Conductor : Annealed plain copper stranded to class 6 of IEC-60228. A seperator is
applied over the conductor.
Sheath : Black Neoprene sheathcomposed of chlorinated rubber compound
type EM5.Sheath is oil resistant and flame retardant to IEC -603321-.

Technical Data
Minimum bending radius : 12 X Cable Ø .

Conductor resistance : As per class 6 of IEC- 60228.
Working voltage : 100 Volts.
Temperature range : - 25ºC to + 80ºC.

Order MESC CODE SIZE STRANDSXDIA. SHEATH APPROX. APPROX. CURRENT
THICKNESS O. D. WEIGHT RATING
No. Sq. mm NO X mm mm mm Kg./Km. Ampere
83007 8385- 01C01000-UOBK8- 00 10 322 X 0.2 2.0 9.0 159 94
83008 8385- 01C01600-UOBK8- 00 16 513 X 0.2 2.0 10.2 225 130
83009 8385- 01C02500-UOBK8- 00 25 798 X 0.2 2.0 11.7 321 171
83010 8385- 01C03500-UOBK8- 00 35 1121 X 0.2 2.0 13.1 426 210
83011 8385- 01C05000-UOBK8- 00 50 1596 X 0.2 2.2 15.3 593 263
83012 8385- 01C07000-UOBK8- 00 70 2221 X 0.2 2.4 17.6 809 325
83013 8385- 01C09500-UOBK8- 00 95 2997 X 0.2 2.6 20.1 1073 388

Packing: Supplied on Wooden Reels of 500/ 1000 Meters.
