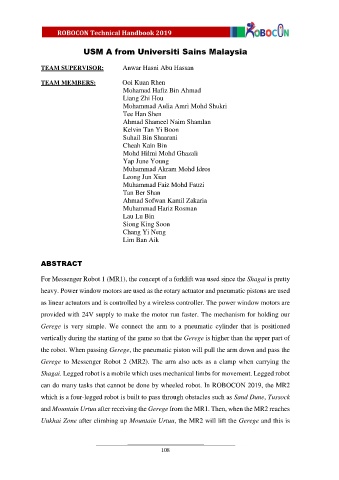

Page 112 - Robot Design Handbook ROBOCON Malaysia 2019

USM A from Universiti Sains Malaysia

TEAM SUPERVISOR: Anwar Hasni Abu Hassan

TEAM MEMBERS: Ooi Kuan Rhen
Mohamad Hafiz Bin Ahmad
Liang Zhi Hou
Mohammad Aulia Amri Mohd Shukri
Tee Han Shen
Ahmad Shameel Naim Shamlan
Kelvin Tan Yi Boon
Suhail Bin Shaarani
Cheah Kain Bin
Mohd Hilmi Mohd Ghazali
Yap June Young
Muhammad Akram Mohd Idros
Leong Jun Xian
Muhammad Faiz Mohd Fauzi
Tan Ber Shan
Ahmad Sofwan Kamil Zakaria
Muhammad Hariz Rosman
Lau Lu Bin
Siong King Soon
Chang Yi Neng
Lim Ban Aik

ABSTRACT

For Messenger Robot 1 (MR1), the concept of a forklift was used since the Shagai is pretty

heavy. Power window motors are used as the rotary actuator and pneumatic pistons are used

as linear actuators and is controlled by a wireless controller. The power window motors are
provided with 24V supply to make the motor run faster. The mechanism for holding our

Gerege is very simple. We connect the arm to a pneumatic cylinder that is positioned
vertically during the starting of the game so that the Gerege is higher than the upper part of

the robot. When passing Gerege, the pneumatic piston will pull the arm down and pass the
Gerege to Messenger Robot 2 (MR2). The arm also acts as a clamp when carrying the

Shagai. Legged robot is a mobile which uses mechanical limbs for movement. Legged robot

can do many tasks that cannot be done by wheeled robot. In ROBOCON 2019, the MR2
which is a four-legged robot is built to pass through obstacles such as Sand Dune, Tussock

and Mountain Urtuu after receiving the Gerege from the MR1. Then, when the MR2 reaches
Uukhai Zone after climbing up Mountain Urtuu, the MR2 will lift the Gerege and this is
