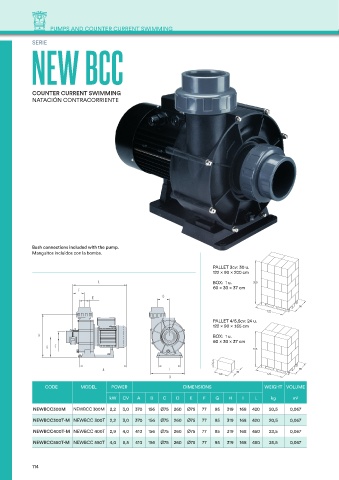

Page 114 - Catalogue IML-VP 2024

PUMPS AND COUNTER CURRENT SWIMMING
SERIE
NEW BCC

COUNTER CURRENT SWIMMING
NATACIÓN CONTRACORRIENTE

Bush connections included with the pump.
Manguitos incluidos con la bomba.

PALLET 3cv: 30 u.
122 × 90 × 200 cm
L BOX: 1 u.
60 × 30 × 37 cm
F
E G

PALLET 4/5,5cv: 24 u.
122 × 90 × 165 cm
H BOX: 1 u.
60 × 30 × 37 cm
B C

A I
D
CODE MODEL POWER DIMENSIONS WEIGHT VOLUME

kW CV A B C D E F G H I L kg m 3
NEWBCC300M NEWBCC 300M 2,2 3,0 370 156 Ø75 260 Ø75 77 95 319 168 420 20,5 0,067

NEWBCC300T-M NEWBCC 300T 2,2 3,0 370 156 Ø75 260 Ø75 77 95 319 168 420 20,5 0,067
NEWBCC400T-M NEWBCC 400T 2,9 4,0 410 156 Ø75 260 Ø75 77 95 319 168 450 23,5 0,067
NEWBCC550T-M NEWBCC 550T 4,0 5,5 410 156 Ø75 260 Ø75 77 95 319 168 450 25,5 0,067
