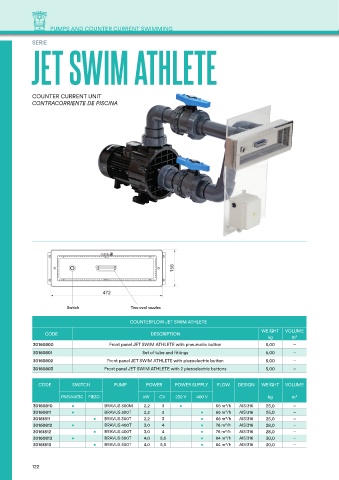

Page 122 - Catalogue IML-VP 2024

PUMPS AND COUNTER CURRENT SWIMMING
SERIE
JET SWIM ATHLETE

COUNTER CURRENT UNIT
CONTRACORRIENTE DE PISCINA

Switch Two oval nozzles

COUNTERFLOW JET SWIM ATHLETE
WEIGHT VOLUME
CODE DESCRIPTION
kg m³
30160800 Front panel JET SWIM ATHLETE with pneumatic button 5,00 –

30160801 Set of tube and fittings 5,00 –
30160802 Front panel JET SWIM ATHLETE with piezoelectric button 5,00 –
30160803 Front panel JET SWIM ATHLETE with 2 piezoelectric buttons 5,00 –

CODE SWITCH PUMP POWER POWER SUPPLY FLOW DESIGN WEIGHT VOLUME
PNEUMATIC PIEZO kW CV 230 V 400 V kg m³
30160810 • BRAVUS 300M 2,2 3 • 66 m³/h AISI316 25,0 –
30160811 • BRAVUS 300T 2,2 3 • 66 m³/h AISI316 25,0 –
30161811 • BRAVUS 300T 2,2 3 • 66 m³/h AISI316 25,0 –
30160812 • BRAVUS 400T 3,0 4 • 76 m³/h AISI316 28,0 –
30161812 • BRAVUS 400T 3,0 4 • 76 m³/h AISI316 28,0 –
30160813 • BRAVUS 500T 4,0 5,5 • 84 m³/h AISI316 30,0 –
30161813 • BRAVUS 500T 4,0 5,5 • 84 m³/h AISI316 30,0 –

122
