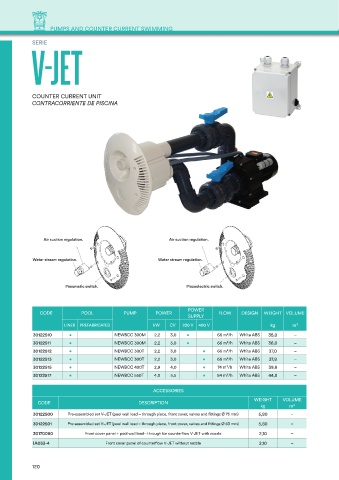

Page 120 - Catalogue IML-VP 2024

PUMPS AND COUNTER CURRENT SWIMMING
SERIE
V-JET

COUNTER CURRENT UNIT
CONTRACORRIENTE DE PISCINA

Air suction regulation. Air suction regulation.

Water stream regulation. Water stream regulation.

Pneumatic switch. Piezoelectric switch.

POWER
CODE POOL PUMP POWER FLOW DESIGN WEIGHT VOLUME
SUPPLY
LINER PREFABRICATED kW CV 230 V 400 V kg m³
30122510 • NEWBCC 300M 2,2 3,0 • 66 m³/h White ABS 35,0 –
30122511 • NEWBCC 300M 2,2 3,0 • 66 m³/h White ABS 36,0 –
30122512 • NEWBCC 300T 2,2 3,0 • 66 m³/h White ABS 37,0 –
30122513 • NEWBCC 300T 2,2 3,0 • 66 m³/h White ABS 37,8 –
30122515 • NEWBCC 400T 2,9 4,0 • 74 m³/h White ABS 39,8 –
30122517 • NEWBCC 550T 4,0 5,5 • 84 m³/h White ABS 44,8 –

ACCESSORIES
WEIGHT VOLUME
CODE DESCRIPTION
kg m³
30122500 Pre-assembled set V-JET (pool wall lead – through piece, front cover, valves and fittings Ø 75 mm) 5,80 –

30122501 Pre-assembled set V-JET (pool wall lead – through piece, front cover, valves and fittings Ø 63 mm) 5,80 –

30170080 Front cover panel + pool wall lead– through for counterflow V-JET with nozzle 2,10 –

IA033-4 Front cover panel of counterflow V-JET without nozzle 2,10 –

120
