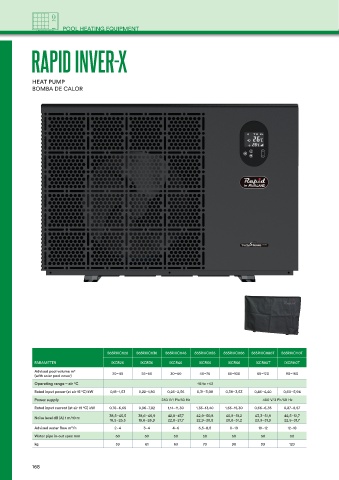

Page 168 - Catalogue IML-VP 2024

POOL HEATING EQUIPMENT

RAPID INVER-X

HEAT PUMP
BOMBA DE CALOR

565RIXC026 565RIXC036 565RIXC046 565RIXC056 565RIXC066 565RIXC080T 565RIXC110T
PARAMETER IXCR26 IXCR36 IXCR46 IXCR56 IXCR66 IXCR80T IXCR110T
Advised pool volume m³ 20–40 25–50 30–60 40–75 55–100 65–120 90–160
(with solar pool cover)
Operating range – air °C -15 to +43
Rated input power (at air 15 °C) kW 0,18–1,53 0,22–1,80 0,26–2,56 0,31–3,08 0,38–3,53 0,46–4,40 0,60–5,94
Power supply 230 V/1 Ph/50 Hz 400 V/3 Ph/50 Hz
Rated input current (at air 15 °C) kW 0,78–6,65 0,96–7,82 1,14–11,30 1,35–13,40 1,65–15,30 0,66–6,35 0,87–8,57
Noise level dB (A) 1 m/10 m 38,5–45,5 38,6–46,9 42,0–47,7 42,9–50,8 40,8–51,2 43,3–51,9 42,5–51,7
18,5–25,5 18,6–26,9 22,0–27,7 22,9–30,8 20,8–31,2 23,3–31,9 22,5–31,7

Advised water flow m³/h 2–4 3–4 4–6 6,5–8,5 8–10 10–12 12–18
Water pipe in-out spec mm 50 50 50 50 50 50 50
kg 59 61 63 70 90 99 120
