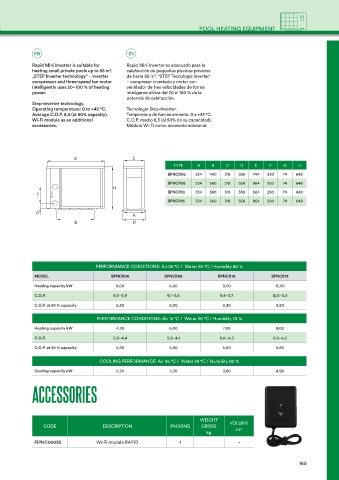

Page 165 - Catalogue IML-VP 2024

POOL HEATING EQUIPMENT

EN ES

Rapid Mini Inverter is suitable for Rapid Mini Inverter es adecuado para la
heating small private pools up to 55 m³. calefacción de pequeñas piscinas privadas
„STEP Inverter technology“ – inverter de hasta 55 m³. "STEP Tecnología inverter“
compressor and three-speed fan motor – compresor invertedo y motor con
intelligently uses 20–100 % of heating ventilador de tres velocidades de forma
power. inteligente utiliza del 20 al 100 % de la
potencia de calefacción.
Step-Inverter technology.
Operating temperature: 0 to +43 °C. Tecnología Step-Inverter.
Average C.O.P. 8,5 (at 50% capacity). Temperatura de funcionamiento: 0 a +43 °C.
Wi-Fi module as an additional C.O.P. medio 8,5 (al 50% de su capacidad).
accessories. Módulo Wi-Fi como accesorio adicional.

E C
TYPE A B C D E F G H
BPNCR06 334 490 318 359 744 330 74 648
BPNCR08 334 560 318 359 864 250 74 648
H
F BPNCR10 334 560 318 359 864 250 74 648
BPNCR13 334 560 318 359 864 290 74 648
G
A
B D

PERFORMANCE CONDITIONS: Air 26 °C / Water 26 °C / Humidity 80 %
MODEL BPNCR06 BPNCR08 BPNCR10 BPNCR13
Heating capacity kW 6,00 8,00 9,50 12,50
C.O.P. 9,5–5,9 9,1–5,6 9,5–5,7 10,5–5,9
C.O.P. at 50 % capacity 8,50 8,00 8,30 9,20

PERFORMANCE CONDITIONS: Air 15 °C / Water 26 °C / Humidity 70 %
Heating capacity kW 4,30 6,00 7,00 9,00

C.O.P. 5,9–4,4 5,9–4,1 6,0–4,3 5,9–4,2
C.O.P. at 50 % capacity 5,80 5,90 5,60 5,80

COOLING PERFORMANCE: Air 35 °C / Water 28 °C / Humidity 80 %
Cooling capacity kW 2,20 3,30 3,80 4,90
ACCESSORIES

WEIGHT
CODE DESCRIPTION PACKING GROSS VOLUME
kg m3
FIPHC00033 Wi-Fi module RAPID 1 –
