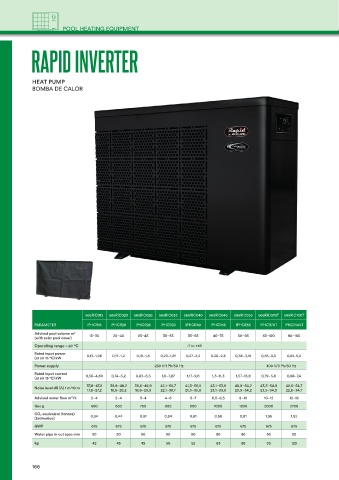

Page 166 - Catalogue IML-VP 2024

POOL HEATING EQUIPMENT

RAPID INVERTER

HEAT PUMP
BOMBA DE CALOR

565RIC015 565RIC020 565RIC026 565RIC033 565RIC040 565RIC045 565RIC055 565RIC070T 565RIC100T
PARAMETER IPHCR15 IPHCR20 IPHCR26 IPHCR33 IPHCR40 IPHCR45 IPHCR55 IPHCR70T IPHCR100T
Advised pool volume m³ 15–30 20–40 25–45 30–55 35–65 40–75 50–95 65–120 90–160
(with solar pool cover)
Operating range – air °C -7 to +43
Rated input power 0,13–1,06 0,17–1,2 0,19–1,5 0,23–1,81 0,27–2,2 0,30–2,6 0,36–3,18 0,55–3,9 0,61–5,2
(at air 15 °C) kW
Power supply 230 V/1 Ph/50 Hz 400 V/3 Ph/50 Hz
Rated input current 0,56–4,60 0,74–5,2 0,83–6,5 1,0–7,87 1,17–9,6 1,3–11,3 1,57–13,8 0,79–5,6 0,88–7,4
(at air 15 °C) kW
37,8–47,2 38,8–48,2 38,6–49,9 42,1–50,7 41,3–55,0 43,1–53,8 40,9–54,2 43,5–54,9 42,6–54,7
Noise level dB (A) 1 m/10 m
17,8–27,2 18,8–28,2 18,6–29,9 22,1–30,7 21,3–35,0 23,1–33,8 20,9–34,2 23,5–34,9 22,6–34,7

Advised water flow m³/h 2–4 2–4 3–4 4–6 5–7 6,5–8,5 8–10 10–12 12–18
Gas g 500 650 750 800 900 1000 1200 2000 2700
CO₂ equivalent (tonnes) 0,34 0,44 0,51 0,54 0,61 0,68 0,81 1,35 1,82
(Estimation)
GWP 675 675 675 675 675 675 675 675 675
Water pipe in-out spec mm 50 50 50 50 50 50 50 50 50
kg 42 45 49 50 52 63 68 93 120
