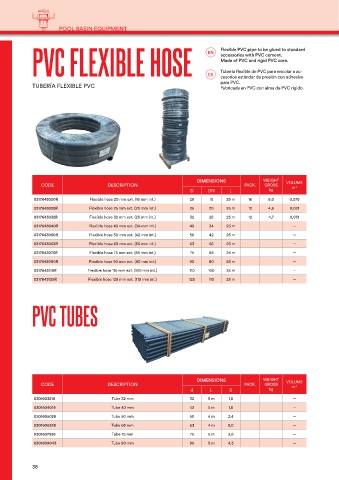

Page 38 - Catalogue IML-VP 2024
P. 38
POOL BASIN EQUIPMENT
PVC FLEXIBLE HOSE EN Flexible PVC pipe to be glued to standard
accessories with PVC cement.
Made of PVC and rigid PVC core.
Tubería flexible de PVC para encolar a ac-
ES
cesorios estándar de presión con adhesivo
para PVC.
TUBERÍA FLEXIBLE PVC Fabricada en PVC con alma de PVC rígido.
DIMENSIONS WEIGHT
CODE DESCRIPTION PACK. GROSS VOLUME
m3
D DN L kg
0317643020R Flexible hose 20 mm ext. (16 mm int.) 20 16 25 m 16 8,0 0,075
0317643025R Flexible hose 25 mm ext. (20 mm int.) 25 20 25 m 12 4,6 0,031
0317643032R Flexible hose 32 mm ext. (25 mm int.) 32 25 25 m 12 4,7 0,031
0317643040R Flexible hose 40 mm ext. (34 mm int.) 40 34 25 m –
0317643050R Flexible hose 50 mm ext. (42 mm int.) 50 42 25 m –
0317643063R Flexible hose 63 mm ext. (55 mm int.) 63 55 25 m –
0317643075R Flexible hose 75 mm ext. (65 mm int.) 75 65 25 m –
0317643090R Flexible hose 90 mm ext. (80 mm int.) 90 80 25 m –
0317643110R Flexible hose 110 mm ext. (100 mm int.) 110 100 25 m –
0317643125R Flexible hose 125 mm ext. (110 mm int.) 125 110 25 m –
PVC TUBES
DIMENSIONS WEIGHT VOLUME
CODE DESCRIPTION PACK. GROSS m3
d L S kg
0301603216 Tube 32 mm 32 5 m 1,8 –
0301604019 Tube 40 mm 42 5 m 1,8 –
0301605028 Tube 50 mm 50 4 m 2,4 –
0301606328 Tube 63 mm 63 4 m 3,0 –
0301607536 Tube 75 mm 75 5 m 3,6 –
0301609043 Tube 90 mm 90 5 m 4,3 –
38
