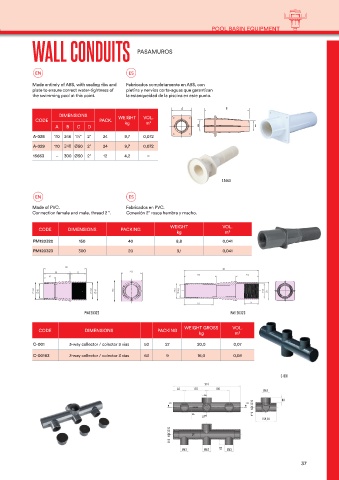

Page 37 - Catalogue IML-VP 2024
P. 37
POOL BASIN EQUIPMENT
WALL CONDUITS PASAMUROS
EN ES
Made entirely of ABS, with sealing ribs and Fabricados completamente en ABS, con
plate to ensure correct water-tightness of pletina y nervios corta-aguas que garantizan
the swimming pool at this point. la estanqueidad de la piscina en este punto.
DIMENSIONS WEIGHT VOL.
CODE PACK. kg m³
A B C D
A-028 110 246 1½" 2" 24 9,7 0,072
A-029 110 246 Ø50 2" 24 9,7 0,072
15663 – 300 Ø50 2" 12 4,2 –
15663
EN ES
Made of PVC. Fabricados en PVC.
Connection female and male, thread 2 “. Conexión 2” rosca hembra y macho.
WEIGHT VOL.
CODE DIMENSIONS PACKING
kg m³
PM120322 150 40 8,8 0,041
PM120323 300 20 9,1 0,041
PM120322 PM120323
WEIGHT GROSS VOL.
CODE DIMENSIONS PACKING
kg m³
C-001 3-way collector / colector 3 vias 50 27 20,0 0,07
C-00163 3-way collector / colector 3 vias 63 9 16,0 0,08
C-001
37
