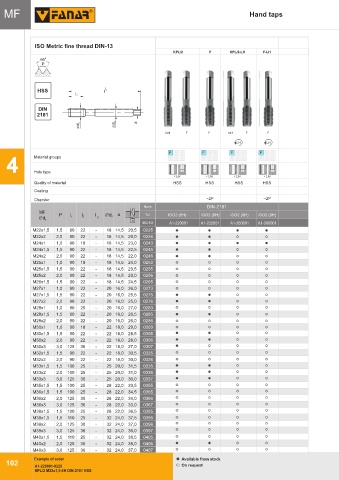

MF Hand taps

KPL-800
ISO Metric fine thread DIN-13
Gwint metryczny drobnozwojny ISO DIN-13
KPL/2 F KPL/2-LH F-LH
0
60
E
S
HSSE
S
H
H HSSESSE
P
PM
M
P PM
M
P
HSS l 1
l 2
DIN
2181
d 1 d 2 a
Nr1 F F Nr1 F F
LH LH
P M K P M K P M K P M K
Material groups N S H N S H N S H N S H
4
Hole type
< 2,5d < 2,5d < 2,5d < 2,5d
Quality of material HSS HSS HSS HSS
Coating
~2P ~2P
Chamfer
Norm DIN-2181
MF a Tol. ISO2 (6H) ISO2 (6H) ISO2 (6H) ISO2 (6H)
Ćd P l 1 l 2 l 3 Ćd 2
1
INDEX A1-220001 A1-222001 A1-260001 A1-260001
M22x1,5 1,5 80 22 - 18 14,5 20,5 0225
M22x2 2,0 80 22 - 18 14,5 20,0 0226
M24x1 1,0 90 18 - 18 14,5 23,0 0243
M24x1,5 1,5 90 22 - 18 14,5 22,5 0245
M24x2 2,0 90 22 - 18 14,5 22,0 0246
M25x1 1,0 90 18 - 18 14,5 24,0 0253
M25x1,5 1,5 90 22 - 18 14,5 23,5 0255
M25x2 2,0 90 22 - 18 14,5 23,0 0256
M26x1,5 1,5 90 22 - 18 14,5 24,5 0265
M27x1 1,0 90 22 - 20 16,0 26,0 0273
M27x1,5 1,5 90 22 - 20 16,0 25,5 0275
M27x2 2,0 90 22 - 20 16,0 25,0 0276
M28x1 1,0 90 20 - 20 16,0 27,0 0283
M28x1,5 1,5 90 22 - 20 16,0 26,5 0285
M28x2 2,0 90 22 - 20 16,0 26,0 0286
M30x1 1,0 90 18 - 22 18,0 29,0 0303
M30x1,5 1,5 90 22 - 22 18,0 28,5 0305
M30x2 2,0 90 22 - 22 18,0 28,0 0306
M30x3 3,0 125 36 - 22 18,0 27,0 0307
M32x1,5 1,5 90 22 - 22 18,0 30,5 0325
M32x2 2,0 90 22 - 22 18,0 30,0 0326
M33x1,5 1,5 100 25 - 25 20,0 31,5 0335
M33x2 2,0 100 25 - 25 20,0 31,0 0336
M33x3 3,0 125 36 - 25 20,0 30,0 0337
M35x1,5 1,5 100 25 - 28 22,0 33,5 0355
M36x1,5 1,5 100 25 - 28 22,0 34,5 0365
M36x2 2,0 125 30 - 28 22,0 34,0 0366
M36x3 3,0 125 36 - 28 22,0 33,0 0367
M38x1,5 1,5 100 25 - 28 22,0 36,5 0385
M39x1,5 1,5 110 25 - 32 24,0 37,5 0395
M39x2 2,0 125 30 - 32 24,0 37,0 0396
M39x3 3,0 125 36 - 32 24,0 36,0 0397
M40x1,5 1,5 110 25 - 32 24,0 38,5 0405
M40x2 2,0 125 36 - 32 24,0 38,0 0406
M40x3 3,0 125 36 - 32 24,0 37,0 0407
Example of order Available from stock
102
A1-220001-0225 On request
KPL/2 M22x1,5-6H DIN-2181 HSS
