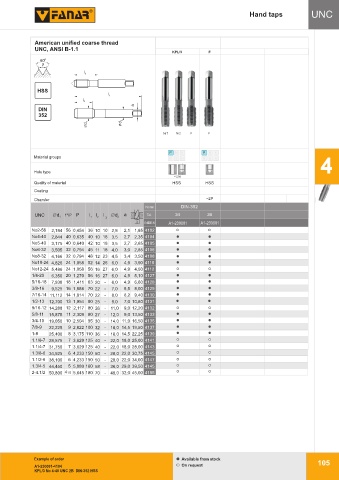

Hand taps UNC

American unified coarse thread KPL-800
Gwint metryczny drobnozwojny ISO DIN-13
UNC, ANSI B-1.1
KPL/3 F
HSSE
S
H S 60 E 0
P
P M
PM
l 3
HSS
l 1
l 2
a
DIN
352
d 1 d 2 3 3
Nr1 Nr2 F F

P M K P M K
Material groups N S H N S H
4
Hole type
< 2,5d
Quality of material HSS HSS
Coating
~2P
Chamfer
Norm DIN-352
UNC Ćd 1 1''/P P l 1 l 2 l Ćd 2 a Tol. 2B 2B
3
INDEX A1-230001 A1-233001
No2-56 2,184 56 0,454 36 10 10 2,8 2,1 1,85 4102
No4-40 2,844 40 0,635 40 10 18 3,5 2,7 2,35 4104
No5-40 3,175 40 0,640 42 10 18 3,5 2,7 2,65 4105
No6-32 3,505 32 0,794 45 11 18 4,0 3,0 2,85 4106
No8-32 4,166 32 0,794 48 12 23 4,5 3,4 3,50 4108
No10-24 4,826 24 1,058 52 14 26 6,0 4,9 3,90 4110
No12-24 5,486 24 1,058 56 16 27 6,0 4,9 4,50 4112
1/4-20 6,350 20 1,270 56 16 27 6,0 4,9 5,10 4127
5/16-18 7,938 18 1,411 63 20 - 6,0 4,9 6,60 4128
3/8-16 9,525 16 1,588 70 22 - 7,0 5,5 8,00 4129
7/16-14 11,112 14 1,814 70 22 - 8,0 6,2 9,40 4130
1/2-13 12,700 13 1,954 80 25 - 9,0 7,0 10,80 4131
9/16-12 14,288 12 2,117 80 26 - 11,0 9,0 12,20 4132
5/8-11 15,875 11 2,309 80 27 - 12,0 9,0 13,50 4133
3/4-10 19,050 10 2,504 95 30 - 14,0 11,0 16,50 4135
7/8-9 22,225 9 2,822 100 32 - 18,0 14,5 19,50 4137
1-8 25,400 8 3,175 110 36 - 18,0 14,5 22,25 4139
1.1/8-7 28,575 7 3,629 125 40 - 22,0 18,0 25,00 4141
1.1/4-7 31,750 7 3,629 125 40 - 22,0 18,0 28,00 4143
1.3/8-6 34,925 6 4,233 150 50 - 28,0 22,0 30,75 4145
1.1/2-6 38,100 6 4,233 150 50 - 28,0 22,0 34,00 4147
1.3/4-5 44,450 5 5,080 160 58 - 36,0 29,0 39,50 4145
2-4.1/2 50,800 41/2 5,645 180 70 - 40,0 32,0 45,00 4155

Example of order Available from stock
105
A1-230001-4104 On request
KPL/3 No 4-40 UNC 2B DIN-352 HSS
