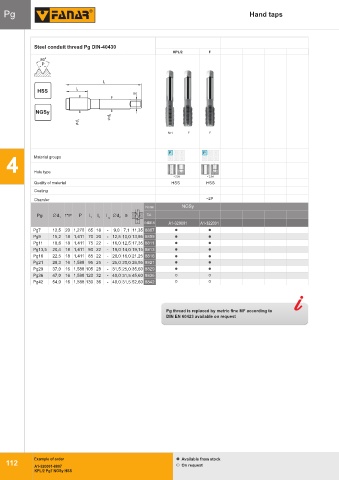

Pg Hand taps

KPL-800
Steel conduit thread Pg DIN-40430
Gwint metryczny drobnozwojny ISO DIN-13
KPL/2 F
S
S
H H H S 80 E 0
HSSE
S
S
E
E
S
P P
M
M
PM
M
P P P
l 1
HSS l 2
a
NGSy
d 2
d 1
Nr1 F F
P M K P M K
Material groups N S H N S H
4
Hole type
< 2,5d < 2,5d
Quality of material HSS HSS
Coating
~2P
Chamfer
Norm NGSy
Pg Ćd 1 1''/P P l 1 l 2 l Ćd 2 a Tol.
3
INDEX A1-320001 A1-322001
Pg7 12,5 20 1,270 65 18 - 9,0 7,1 11,35 8807
Pg9 15,2 18 1,411 70 20 - 12,5 10,0 13,95 8809
Pg11 18,6 18 1,411 75 22 - 16,0 12,5 17,35 8811
Pg13,5 20,4 18 1,411 80 22 - 18,0 14,0 19,15 8813
Pg16 22,5 18 1,411 85 22 - 20,0 16,0 21,25 8816
Pg21 28,3 16 1,588 95 25 - 25,0 20,0 26,95 8821
Pg29 37,0 16 1,588 105 28 - 31,5 25,0 35,60 8829
Pg36 47,0 16 1,588 120 32 - 40,0 31,5 45,60 8836
Pg42 54,0 16 1,588 130 36 - 40,0 31,5 52,60 8842

Pg thread is replaced by metric fine MF according to
DIN EN 60423 available on request

Example of order Available from stock
112
A1-320001-8807 On request
KPL/2 Pg7 NGSy HSS
