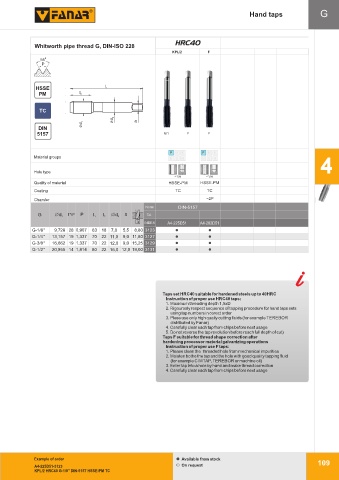

Hand taps G

HRC40 KPL-800
KPL-800
Whitworth pipe thread G, DIN-ISO 228
Gwint metryczny drobnozwojny ISO DIN-13
KPL/2 F
S
H H H S 55 E 0
S
HSSE
E
E
S
S
S
P P
PM
M
P P P M
M
HSSE l 1
PM l 2
TC
d 2
d 1 a
DIN 3 3
5157 Nr1 F F
P M K P M K
Material groups N S H N S H
4
Hole type
< 1,5d < 1,5d
Quality of material HSSE-PM HSSE-PM
Coating TC TC
~2P
Chamfer
Norm DIN-5157
G Ćd 1 1''/P P l 1 l 2 Ćd 2 a Tol.
INDEX A4-225D51 A4-202D51
G-1/8'' 9,728 28 0,907 63 18 7,0 5,5 8,80 3123
G-1/4'' 13,157 19 1,337 70 22 11,0 9,0 11,80 3127
G-3/8'' 16,662 19 1,337 70 22 12,0 9,0 15,25 3129
G-1/2'' 20,955 14 1,814 80 22 16,0 12,0 19,00 3131

Taps set HRC40 suitable for hardened steels up to 40HRC
Instruction of proper use HRC40 taps:
1. Maximum threading depth 1,5xD
2. Rigourosly respect sequence of tapping procedure for hand taps sets
using tap numbers in corect order
3. Plese use only high qualiy cutting fluids (for example TEREBOR
distributed by Fanar)
4. Carefully clear each tap from chips before next usage
5. Do not reverse the tap revolution before reach full depth of cut)
Taps F suitable for thread shape correction after
hardening processor material galvanizing operations
Instruction of proper use F taps:
1. Please clean the threaded hole from mechanical impurities
2. Moisten bothe the tap and the hole with good quality tapping fluid
(for example CIMTAP, TEREBOR or machine oil)
3. Enter tap into a hole by hand and make thread correction
4. Carefully clear each tap from chips before next usage

Example of order Available from stock
109
A4-225D51-3123 On request
KPL/2 HRC40 G-1/8'' DIN-5157 HSSE-PM TC
