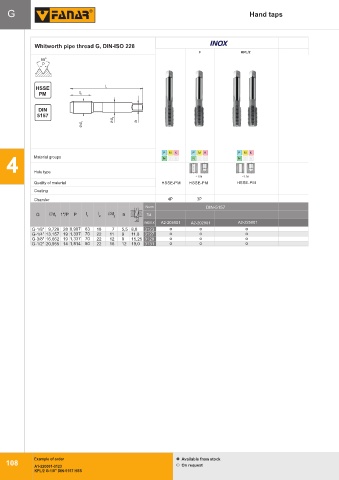

Page 112 - Fanar

G Hand taps

INOX
Whitworth pipe thread G, DIN-ISO 228
Gwint metryczny drobnozwojny ISO DIN-13
F KPL/2
S
S
HSSE
H H H S 55 E 0
S
S
S
E
E
P P
PM
P P P M
M
M
HSSE l 1
PM l 2
DIN
5157
d 2
d 1 a
Nr1 F F Nr1 F
P P M M K K P M K P M K
Material groups N N S S H H N S H N S H
4
Hole type
< 1.5d < 1.5d
Quality of material HSSE-PM HSSE-PM HSSE-PM
Coating
Chamfer 4P 3P
Norm DIN-5157
INDEX
G Ćd 1 1"/P P l 1 l 2 Ćd 2 a Tol.
INDEX A2-205801 A2-202801 A2-225801
G-1/8" 9,728 28 0,907 63 18 7 5,5 8,8 3123
G-1/4" 13,157 19 1,337 70 22 11 9 11,8 3127
G-3/8" 16,662 19 1,337 70 22 12 9 15,25 3129
G-1/2" 20,955 14 1,814 80 22 16 12 19,0 3131

Example of order Available from stock
108
A1-220001-3123 On request
KPL/2 G-1/8'' DIN-5157 HSS
