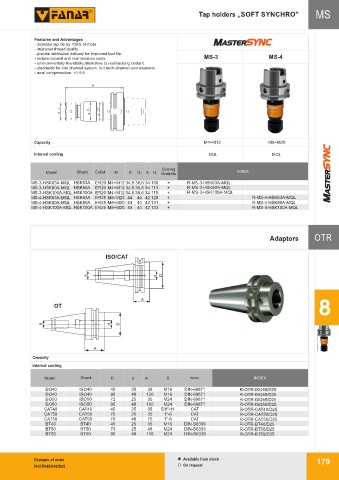

MS Tap holders „SOFT SYNCHRO” MS

Features and Advantages
- increase tap life by 100% or more MASTERSYNC
- improves thread quality
- precise lubrication delivery for improved tool life
- reduce coolant and maintenance costs MS-3 MS-4
- environmentally friendddly alternative to recirculating coolant
- standardd for one channel system, but multi-channel also available
- axial compensation: +/- 0,5

Capacity M4÷M12 M8÷M20
Internal cooling MQL MQL

Sealing
Uszczelki
Model Shank Collet M D D D A HH INDEX MASTERSYNC
Gaskets
Seal nut
MS-3-HSK63A-MQL HSK63A ER20 M4÷M12 34,6 36,6 34 108 + R-MS-3-HSK63A-MQL
MS-3-HSK80A-MQL HSK80A ER20 M4÷M12 34,6 36,6 34 113 + R-MS-3-HSK80A-MQL
MS-3-HSK100A-MQL HSK100A ER20 M4÷M12 34,6 36,6 34 115 + R-MS-3-HSK100A-MQL
MS-4-HSK63A-MQL HSK63A ER25 M8÷M20 44 44 42 128 + R-MS-4-HSK63A-MQL
MS-4-HSK80A-MQL HSK80A ER25 M8÷M20 44 44 42 131 + R-MS-4-HSK80A-MQL
MS-4-HSK100A-MQL HSK100A ER25 M8÷M20 44 44 42 133 + R-MS-4-HSK100A-MQL

Adaptors OTR

ISO/CAT

g d D

A
8 8
OT

g d D

A
Capacity
Internal cooling
Model Shank D d D A A H g Norm INDEX

ISO40 ISO40 45 25 35 M16 DIN-69871 R-OTR-ISO40/D25
ISO40 ISO40 90 40 120 M16 DIN-69871 R-OTR-ISO40/D25
ISO50 ISO50 72 25 35 M24 DIN-69871 R-OTR-ISO50/D25
ISO50 ISO50 90 40 100 M24 DIN-69871 R-OTR-ISO50/D25
CAT40 CAT40 45 25 35 5/8"-11 CAT R-OTR-CAT40/D25
CAT50 CAT50 70 25 35 1"-8 CAT R-OTR-CAT50/D25
CAT50 CAT50 70 40 75 1"-8 CAT R-OTR-CAT50/D25
BT40 BT40 45 25 35 M16 DIN-B6339 R-OTR-BT40/D25
BT50 BT50 70 25 48 M24 DIN-B6339 R-OTR-BT50/D25
BT50 BT50 90 40 110 M24 DIN-B6339 R-OTR-BT50/D25

Example of order Available from stock 179
R-OTR-ISO40/D25 On request
