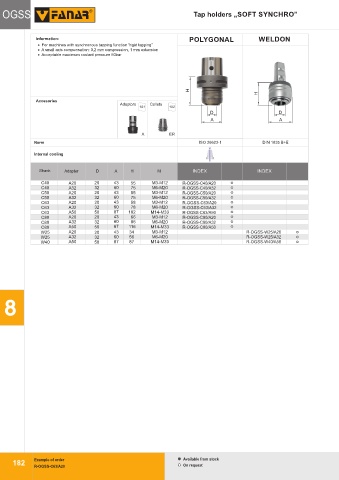

OGSS Tap holders „SOFT SYNCHRO”
OGSS

Information: POLYGONAL WELDON
· For machines with synchronous tapping function "rigid tapping”
· A small axis compensation: 0,2 mm compression, 1 mm extension
· Acceptable maximum coolant pressure 50bar

H
H
Accesories
Adaptors Collets
191 192
D D
A A

A ER
Norm ISO 26623-1 DIN 1835 B+E

Internal cooling

Shank Adapter D A H M INDEX INDEX

C40 A20 20 43 55 M3-M12 R-OGSS-C40/A20
C40 A32 32 60 75 M6-M20 R-OGSS-C40/A32
C50 A20 20 43 55 M3-M12 R-OGSS-C50/A20
C50 A32 32 60 75 M6-M20 R-OGSS-C50/A32
C63 A20 20 43 58 M3-M12 R-OGSS-C63/A20
C63 A32 32 60 78 M6-M20 R-OGSS-C63/A32
C63 A50 50 87 102 M14-M33 R-OGSS-C63/A50
C80 A20 20 43 66 M3-M12 R-OGSS-C80/A20
C80 A32 32 60 86 M6-M20 R-OGSS-C80/A32
C80 A50 50 87 116 M14-M33 R-OGSS-C80/A50
OGN W25 A20 20 43 34 M3-M12 R-OGSS-W25/A20
W25 A32 32 60 56 M6-M20 R-OGSS-W25/A32
W40 A50 50 87 87 M14-M33 R-OGSS-W40/A50

8

182 Example of order Available from stock
182
R-OGSS-C63/A20 On request
