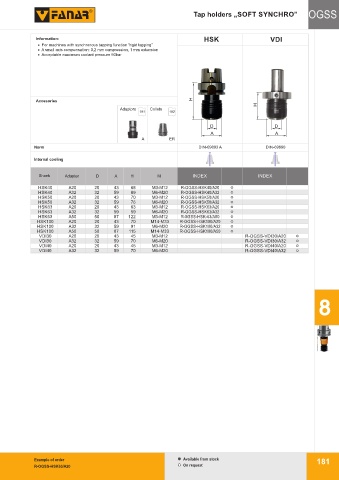

Tap holders „SOFT SYNCHRO” OGSS

Information: HSK VDI
· For machines with synchronous tapping function "rigid tapping”
· A small axis compensation: 0,2 mm compression, 1 mm extension
· Acceptable maximum coolant pressure 50bar

Accesories H
H
Adaptors Collets
191 192
D D
A A
A ER
Norm DIN-69893 A DIN-69880

Internal cooling

Shank Adapter D A H M INDEX INDEX

HSK40 A20 20 43 68 M3-M12 R-OGSS-HSK40/A20
HSK40 A32 32 59 89 M6-M20 R-OGSS-HSK40/A32
HSK50 A20 20 43 70 M3-M12 R-OGSS-HSK50/A20
HSK50 A32 32 59 76 M6-M20 R-OGSS-HSK50/A32
HSK63 A20 20 43 63 M3-M12 R-OGSS-HSK63/A20
HSK63 A32 32 59 59 M6-M20 R-OGSS-HSK63/A32
HSK63 A50 50 87 122 M3-M12 R-0GSS-HSK-63/A50
HSK100 A20 20 43 70 M14-M33 R-OGSS-HSK100/A20
HSK100 A32 32 59 91 M6-M20 R-OGSS-HSK100/A32
HSK100 A50 50 87 115 M14-M33 R-OGSS-HSK100/A50
VDI30 A20 20 43 45 M3-M12 R-OGSS-VDI30/A20
VDI30 A32 32 59 70 M6-M20 R-OGSS-VDI30/A32
VDI40 A20 20 43 45 M3-M12 R-OGSS-VDI40/A20
VDI40 A32 32 59 70 M6-M20 R-OGSS-VDI40/A32

8 8

Example of order Available from stock 181
R-OGSS-HSK63/A20 On request
