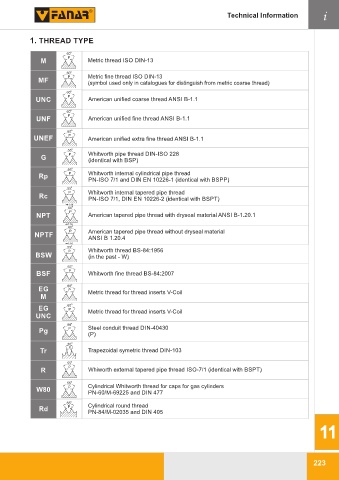

1. THREAD TYPE

60 0
P
M Metric thread ISO DIN-13
60 0
P Metric fine thread ISO DIN-13
MF (symbol used only in catalogues for distinguish from metric coarse thread)
60 0
P
UNC American unified coarse thread ANSI B-1.1
60
60 0 0
P P
UNF American unified fine thread ANSI B-1.1
60 0
P
UNEF American unified extra fine thread ANSI B-1.1

55 0
P Whitworth pipe thread DIN-ISO 228
G
(identical with BSP)
55 0
Rp P Whitworth internal cylindrical pipe thread
PN-ISO 7/1 and DIN EN 10226-1 (identical with BSPP)
55 0
P Whitworth internal tapered pipe thread
Rc
PN-ISO 7/1, DIN EN 10226-2 (identical with BSPT)
1:16
60 0
P
NPT American tapered pipe thread with dryseal material ANSI B-1.20.1
1:16
60 0
P American tapered pipe thread without dryseal material
NPTF
ANSI B 1.20.4
1:16
55 0
P Whitworth thread BS-84:1956
BSW (in the past - W)
55 0
BSF P Whitworth fine thread BS-84:2007

60 0
EG P
Metric thread for thread inserts V-Coil
M
60 0
EG P Metric thread for thread inserts V-Coil
UNC
80 0
Pg P Steel conduit thread DIN-40430
(P)
30 0
P
Tr Trapezoidal symetric thread DIN-103
55 0
P
R Whiworth external tapered pipe thread ISO-7/1 (identical with BSPT)

Cylindrical Whitworth thread for caps for gas cylinders
W80
PN-60/M-69225 and DIN 477
Cylindrical round thread
Rd
PN-84/M-02035 and DIN 405
