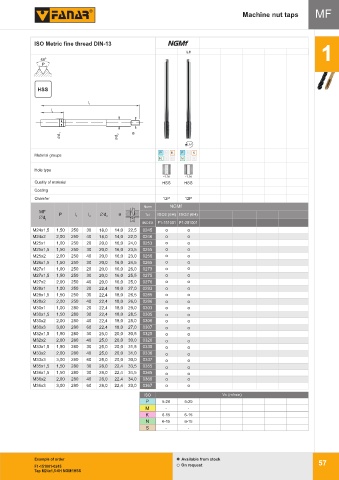

Machine nut taps MF

ISO Metric fine thread DIN-13 NGMf
1
LH
60 0
S
S
HSSE
H
E
P
P
PM
M
HSS
l 1
l 2

d 1 d 2 a
LH
P M K P M K
Material groups
N S H N S H
Hole type
< 1,5d < 1,5d
Quality of material HSS HSS
Coating
Chamfer 12P 12P
Norm NGMf
MF a ISO2 (6H) ISO2 (6H)
Ćd P Tolerancja l 1 l 2 Ćd 2 Tol.
1
INDEX F1-151001 F1-251001
M24x1,5 1,50 250 30 18,0 14,0 22,5 0245
M24x2 2,00 250 40 18,0 14,0 22,0 0246
M25x1 1,00 250 20 20,0 16,0 24,0 0253
M25x1,5 1,50 250 30 20,0 16,0 23,5 0255
M25x2 2,00 250 40 20,0 16,0 23,0 0256
M26x1,5 1,50 250 30 20,0 16,0 24,5 0265
M27x1 1,00 250 20 20,0 16,0 26,0 0273
Tolerancja
M27x1,5 1,50 250 30 20,0 16,0 25,5 0275
M27x2 2,00 250 40 20,0 16,0 25,0 0276
M28x1 1,00 250 20 22,4 18,0 27,0 0283
M28x1,5 1,50 250 30 22,4 18,0 26,5 0285
M28x2 2,00 250 40 22,4 18,0 26,0 0286
M30x1 1,00 280 20 22,4 18,0 29,0 0303
M30x1,5 1,50 280 30 22,4 18,0 28,5 0305
M30x2 2,00 280 40 22,4 18,0 28,0 0306
M30x3 3,00 280 60 22,4 18,0 27,0 0307
M32x1,5 1,50 280 30 25,0 20,0 30,5 0325
M32x2 2,00 280 40 25,0 20,0 30,0 0326
M33x1,5 1,50 280 30 25,0 20,0 31,5 0335
M33x2 2,00 280 40 25,0 20,0 31,0 0336
M33x3 3,00 280 60 25,0 20,0 30,0 0337
M35x1,5 1,50 280 30 28,0 22,4 33,5 0355
M36x1,5 1,50 280 30 28,0 22,4 34,5 0365
M36x2 2,00 280 40 28,0 22,4 34,0 0366
M36x3 3,00 280 60 28,0 22,4 33,0 0367
ISO Vc (m/min)
P 5-20 5-20
M - -
K 6-15 6-15
N 6-15 6-15
S - -

Example of order Available from stock 57
F1-151001-0245 On request
Tap M24x1,5-6H NGMf HSS
