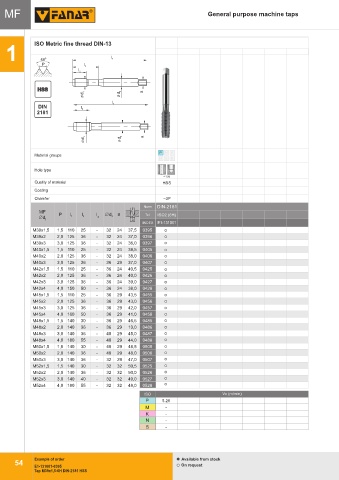

Page 58 - Fanar

MF General purpose machine taps MF

ISO Metric fine thread DIN-13
1

0
60
S
E
HSSE l 1
H
S
P
PM
P M l 3
l 2
HSS
d 1 d 2 a
l 1
DIN
l 2
2181
d 1 d 2 a

P M K
Material groups
N S H
Hole type
< 1,5d
Quality of material HSS
Coating
Chamfer ~3P
Norm DIN-2181
MF a
Ćd P Tolerancja l 21 l l 3 Ćd 2 Tol. ISO2 (6H)
1
INDEX E1-131001
M39x1,5 1,5 110 25 - 32 24 37,5 0395
M39x2 2,0 125 36 - 32 24 37,0 0396
M39x3 3,0 125 36 - 32 24 36,0 0397
M40x1,5 1,5 110 25 - 32 24 38,5 0405
M40x2 2,0 125 36 - 32 24 38,0 0406
M40x3 3,0 125 36 - 36 29 37,0 0407
M42x1,5 1,5 110 25 - 36 24 40,5 0425
Tolerancja
M42x2 2,0 125 36 - 36 24 40,0 0426
M42x3 3,0 125 36 - 36 24 39,0 0427
M42x4 4,0 150 50 - 36 24 38,0 0428
M45x1,5 1,5 110 25 - 36 29 43,5 0455
M45x2 2,0 125 36 - 36 29 43,0 0456
M45x3 3,0 125 36 - 36 29 42,0 0457
M45x4 4,0 160 50 - 36 29 41,0 0458
M48x1,5 1,5 140 30 - 36 29 46,5 0485
M48x2 2,0 140 36 - 36 29 13,0 0486
M48x3 3,0 140 36 - 40 29 45,0 0487
M48x4 4,0 180 55 - 40 29 44,0 0488
M50x1,5 1,5 140 30 - 40 29 48,5 0505
M50x2 2,0 140 36 - 40 29 48,0 0506
M50x3 3,0 140 36 - 32 29 47,0 0507
M52x1,5 1,5 140 30 - 32 32 50,5 0525
M52x2 2,0 140 36 - 32 32 50,0 0526
M52x3 3,0 140 40 - 32 32 49,0 0527
M52x4 4,0 180 55 - 32 32 48,0 0528
ISO Vc (m/min)
P 5-20
M -
K -
N -
S -

Example of order Available from stock
54
E1-131001-0395 On request
Tap M39x1,5-6H DIN-2181 HSS
