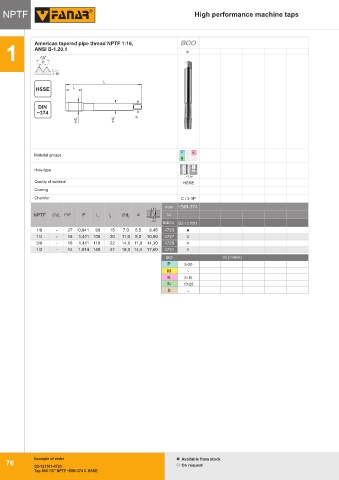

NPTF High performance machine taps

American tapered pipe thread NPTF 1:16, 800
Gwint metryczny ISO DIN-13
1 ANSI B-1.20.1 C
0
60
P
1:16
l 1
HSSE l 2

DIN
~374
d 1 d 2 a

P M K
Material groups
N S H
Hole type
< 1,5d
Quality of material HSSE
Coating
Chamfer C / 2-3P
Norm ~DIN-374
NPTF Ćd 1 1''/P P l 1 l 2 Ćd 2 a Tol.
INDEX D2-121101
1/8 - 27 0,941 90 15 7,0 5,5 8,45 4723
1/4 - 18 1,411 100 20 11,0 9,0 10,90 4727
3/8 - 18 1,411 110 22 14,0 11,0 14,30 4729
1/2 - 14 1,814 140 27 18,0 14,5 17,60 4731
ISO Vc (m/min)
P 5-20
M -
K 5-15
N 10-25
S -

Example of order Available from stock
76
D2-121101-4723 On request
Tap 800 1/8" NPTF ~DIN-374 C HSSE
