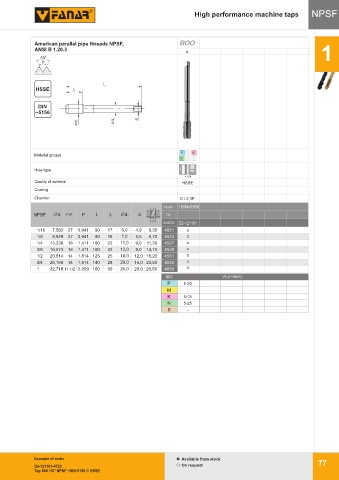

High performance machine taps NPSF

American parallel pipe threads NPSF, 800
Gwint metryczny ISO DIN-13
ANSI B 1.20.3
C 1
60 0
HSSE
P
PM

l 1
HSSE l 2

DIN
~5156
d 1 d 2 a

P M K
Material groups
N S H
Hole type
< 1,5d
Quality of material HSSE
Coating
Chamfer C / 2-3P
Norm ~DIN-5156
NPSF Ćd 1 1''/P P l 1 l 2 Ćd 2 a Tol.
INDEX D2-121101
1/16 7,582 27 0,941 90 17 6,0 4,9 6,35 4521
1/8 9,929 27 0,941 90 18 7,0 5,5 8,70 4523
1/4 13,236 18 1,411 100 22 11,0 9,0 11,30 4527
3/8 16,673 18 1,411 100 22 12,0 9,0 14,75 4529
1/2 20,814 14 1,814 125 25 16,0 12,0 18,20 4531
3/4 26,166 14 1,814 140 28 20,0 16,0 23,50 4535
1 32,718 11.1/2 2,209 160 30 25,0 20,0 29,50 4539
ISO Vc (m/min)
P 5-20
M -
K 5-15
N 5-25
S -

Example of order Available from stock
77
D2-121101-4723 On request
Tap 800 1/8" NPSF ~DIN-5156 C HSSE
