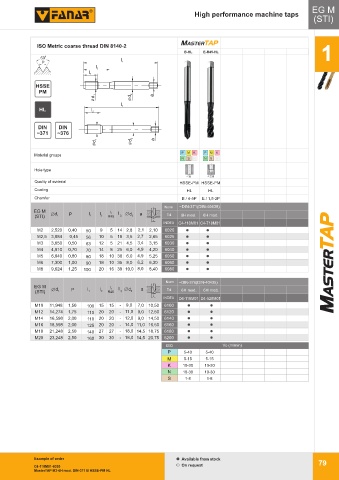

Page 83 - Fanar

EG M
High performance machine taps
(STI)

Gwint metryczny ISO DIN-13
ISO Metric coarse thread DIN 8140-2 MASTERTAP
B-HL E-R45-HL 1
60 0
P l 1
l 3
l 2
HSSE
PM
d 1 d 2 a
l 1
HL
HL l 2

DIN DIN
~371 ~376
d 1 d 2 a

P M K P M K
Material groups
N S H N S H
Hole type
< 3d < 2,5d
Quality of material HSSE-PM HSSE-PM
Coating HL HL
Chamfer B / 4-5P E / 1,5-2P
Norm ~DIN-371(DIN-40435)
EG M l 2 l
(STI) Ć d 1 P l 1 l 2 R45 3 Ćd 2 a Tol. 6H mod. 6H mod.
INDEX C4-118M01 C4-718M01
M2 2,520 0,40 50 9 5 14 2,8 2,1 2,10 6020
M2,5 3,084 0,45 56 10 5 18 3,5 2,7 2,65 6025
M3 3,650 0,50 63 12 5 21 4,5 3,4 3,15 6030
M4 4,910 0,70 70 14 8 25 6,0 4,9 4,20 6040
M5 6,040 0,80 80 18 10 30 6,0 4,9 5,25 6050 MASTERTAP
M6 7,300 1,00 90 18 10 35 8,0 6,2 6,30 6060
M8 9,624 1,25 100 20 16 39 10,0 8,0 8,40 6080

Norm ~DIN-376(DIN-40435)
EG M l 2 l
(STI) Ć d 1 P l 1 l 2 R45 3 Ćd 2 a Tol. 6H mod. 6H mod.
INDEX D4-118M01 D4-528M01
M10 11,948 1,50 100 15 15 - 9,0 7,0 10,50 6100
M12 14,274 1,75 110 20 20 - 11,0 9,0 12,50 6120
M14 16,598 2,00 110 20 20 - 12,0 9,0 14,50 6140
M16 18,598 2,00 125 20 20 - 14,0 11,0 16,50 6160
M18 21,248 2,50 140 27 27 - 18,0 14,5 18,75 6180
M20 23,248 2,50 160 30 30 - 18,0 14,5 20,75 6200
ISO Vc (m/min)
P 5-40 5-40
M 5-15 5-15
K 10-30 10-30
N 10-30 10-30
S 1-8 1-8

Example of order Available from stock
79
C4-118M01-6030 On request
MasterTAP M3-6H mod. DIN-371 B HSSE-PM HL
