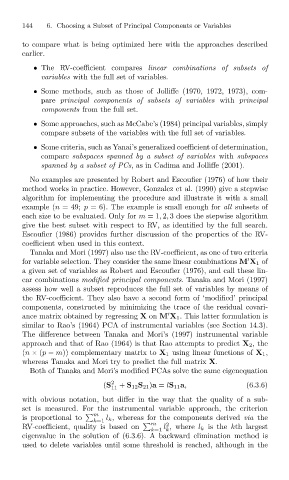

Page 175 - Jolliffe I. Principal Component Analysis

6. Choosing a Subset of Principal Components or Variables
144
to compare what is being optimized here with the approaches described
earlier.
• The RV-coefficient compares linear combinations of subsets of
variables with the full set of variables.
• Some methods, such as those of Jolliffe (1970, 1972, 1973), com-
pare principal components of subsets of variables with principal
components from the full set.
• Some approaches, such as McCabe’s (1984) principal variables, simply
compare subsets of the variables with the full set of variables.

• Some criteria, such as Yanai’s generalized coefficient of determination,
compare subspaces spanned by a subset of variables with subspaces
spanned by a subset of PCs, as in Cadima and Jolliffe (2001).

No examples are presented by Robert and Escoufier (1976) of how their
method works in practice. However, Gonzalez et al. (1990) give a stepwise
algorithm for implementing the procedure and illustrate it with a small
example (n = 49; p = 6). The example is small enough for all subsets of
each size to be evaluated. Only for m =1, 2, 3 does the stepwise algorithm
give the best subset with respect to RV, as identified by the full search.
Escoufier (1986) provides further discussion of the properties of the RV-
coefficient when used in this context.
Tanaka and Mori (1997) also use the RV-coefficient, as one of two criteria

for variable selection. They consider the same linear combinations M X 1 of
a given set of variables as Robert and Escoufier (1976), and call these lin-
ear combinations modified principal components. Tanaka and Mori (1997)
assess how well a subset reproduces the full set of variables by means of
the RV-coefficient. They also have a second form of ‘modified’ principal
components, constructed by minimizing the trace of the residual covari-
ance matrix obtained by regressing X on M X 1 . This latter formulation is

similar to Rao’s (1964) PCA of instrumental variables (see Section 14.3).
The difference between Tanaka and Mori’s (1997) instrumental variable
approach and that of Rao (1964) is that Rao attempts to predict X 2 ,the
(n × (p − m)) complementary matrix to X 1 using linear functions of X 1 ,
whereas Tanaka and Mori try to predict the full matrix X.
Both of Tanaka and Mori’s modified PCAs solve the same eigenequation

(S 2 11 + S 12 S 21 )a = lS 11 a, (6.3.6)
with obvious notation, but differ in the way that the quality of a sub-
set is measured. For the instrumental variable approach, the criterion

l
is proportional to k=1 k , whereas for the components derived via the
m
2
RV-coefficient, quality is based on m l , where l k is the kth largest
k=1 k
eigenvalue in the solution of (6.3.6). A backward elimination method is
used to delete variables until some threshold is reached, although in the
