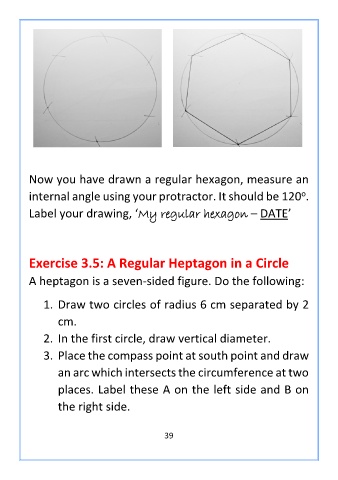

Now you have drawn a regular hexagon, measure an
                                                                            o
        internal angle using your protractor. It should be 120 .
        Label your drawing, ‘My regular hexagon – DATE’





        Exercise 3.5: A Regular Heptagon in a Circle

        A heptagon is a seven-sided figure. Do the following:

            1. Draw two circles of radius 6 cm separated by 2

               cm.

            2. In the first circle, draw vertical diameter.
            3. Place the compass point at south point and draw

               an arc which intersects the circumference at two

               places. Label these A on the left side and B on
               the right side.



                                          39
