APPENDICES APPENDICES

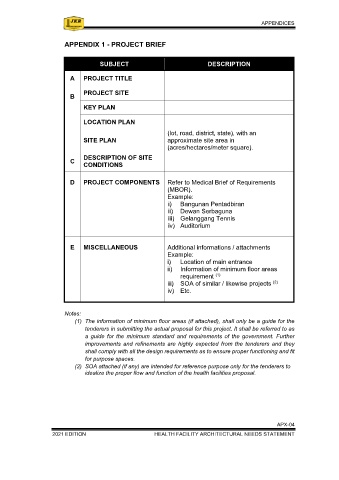

APPENDIX 1 - PROJECT BRIEF

SUBJECT DESCRIPTION

A PROJECT TITLE

B PROJECT SITE

KEY PLAN

LOCATION PLAN
(lot, road, district, state), with an
SITE PLAN approximate site area in
(acres/hectares/meter square).

DESCRIPTION OF SITE
C CONDITIONS

D PROJECT COMPONENTS Refer to Medical Brief of Requirements
(MBOR). APPENDIX 2:
Example:
i) Bangunan Pentadbiran SCHEDULE OF
ii) Dewan Serbaguna
iii) Gelanggang Tennis
iv) Auditorium ACCOMMODATION AND

FINISHES
E MISCELLANEOUS Additional informations / attachments
Example:
i) Location of main entrance
ii) Information of minimum floor areas
requirement
(1)
iii) SOA of similar / likewise projects
(2)
iv) Etc.

Notes:
(1) The information of minimum floor areas (if attached), shall only be a guide for the
tenderers in submitting the actual proposal for this project. It shall be referred to as
a guide for the minimum standard and requirements of the government. Further
improvements and refinements are highly expected from the tenderers and they
shall comply with all the design requirements as to ensure proper functioning and fit
for purpose spaces.
(2) SOA attached (if any) are intended for reference purpose only for the tenderers to
idealize the proper flow and function of the health facilities proposal.

APX-04 APX-05
