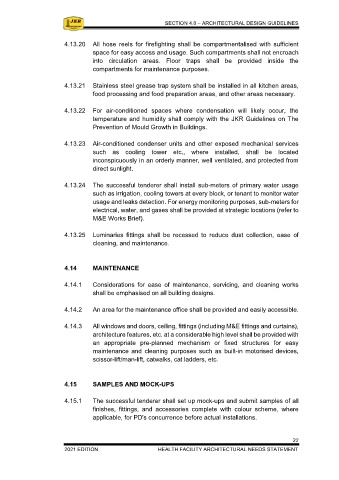

Page 31 - JKR HEALTH FACILITY ARCHITECTURAL NEEDS STATEMENT 2021 EDITION_Neat

SECTION 4.0 – ARCHITECTURAL DESIGN GUIDELINES SECTION 4.0 – ARCHITECTURAL DESIGN GUIDELINES

4.13.20 All hose reels for firefighting shall be compartmentalised with sufficient 4.15.2 The successful tenderer shall arrange factory/showroom visits prior to
space for easy access and usage. Such compartments shall not encroach producing and selecting materials, equipment and/or furniture.
into circulation areas. Floor traps shall be provided inside the
compartments for maintenance purposes. 4.15.3 The approved samples of all finishes, fittings, and accessories shall be
appropriately mounted on sample boards with labels and shall be placed at
4.13.21 Stainless steel grease trap system shall be installed in all kitchen areas, the site office for reference.
food processing and food preparation areas, and other areas necessary.

4.13.22 For air-conditioned spaces where condensation will likely occur, the
temperature and humidity shall comply with the JKR Guidelines on The
Prevention of Mould Growth in Buildings.

4.13.23 Air-conditioned condenser units and other exposed mechanical services
such as cooling tower etc., where installed, shall be located
inconspicuously in an orderly manner, well ventilated, and protected from
direct sunlight.

4.13.24 The successful tenderer shall install sub-meters of primary water usage
such as irrigation, cooling towers at every block, or tenant to monitor water
usage and leaks detection. For energy monitoring purposes, sub-meters for
electrical, water, and gases shall be provided at strategic locations (refer to
M&E Works Brief).

4.13.25 Luminaries fittings shall be recessed to reduce dust collection, ease of
cleaning, and maintenance.

4.14 MAINTENANCE

4.14.1 Considerations for ease of maintenance, servicing, and cleaning works
shall be emphasised on all building designs.

4.14.2 An area for the maintenance office shall be provided and easily accessible.

4.14.3 All windows and doors, ceiling, fittings (including M&E fittings and curtains),
architecture features, etc. at a considerable high level shall be provided with
an appropriate pre-planned mechanism or fixed structures for easy
maintenance and cleaning purposes such as built-in motorised devices,
scissor-lift/man-lift, catwalks, cat ladders, etc.

4.15 SAMPLES AND MOCK-UPS

4.15.1 The successful tenderer shall set up mock-ups and submit samples of all
finishes, fittings, and accessories complete with colour scheme, where
applicable, for PD's concurrence before actual installations.

22 23
2021 EDITION HEALTH FACILITY ARCHITECTURAL NEEDS STATEMENT 2021 EDITION HEALTH FACILITY ARCHITECTURAL NEEDS STATEMENT
