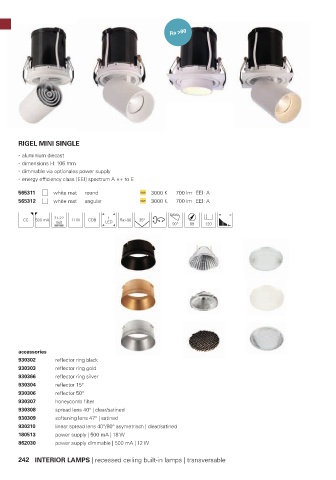

Page 243 - Deko-Light Light Impressions 2019-20
P. 243
Ra >90
RIGEL MINI SINGLE
aluminium diecast
dimensions H: 106 mm
dimmable via optionales power supply
energy efficiency class [EEI] spectrum A ++ to E
565311 white mat round WW 3000 K 700 lm EEI: A
565312 white mat angular WW 3000 K 700 lm EEI: A
1
CC 500 mA 21-22 11 W COB LED Ra>90 35° 90° 89 120
accessories
930302 reflector ring black
930303 reflector ring gold
930366 reflector ring silver
930304 reflector 15°
930306 reflector 50°
930307 honeycomb filter
930308 spread lens 40° | clear/satined
930309 softening lens 47° | satined
930310 linear spread lens 40°/80° asymetrisch | clear/satined
180513 power supply | 500 mA | 18 W
862030 power supply dimmable | 500 mA | 12 W
242 INTERIOR LAMPS | recessed ceiling built-in lamps | transversable
