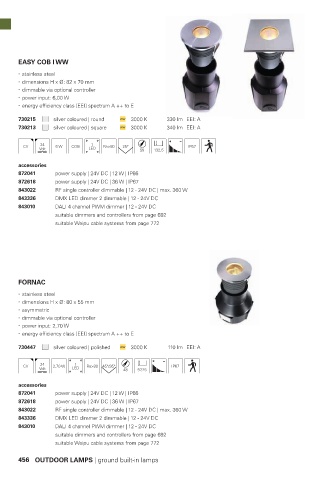

Page 457 - Deko-Light Light Impressions 2019-20
P. 457
EASY COB I WW
stainless steel
dimensions H x Ø: 82 x 70 mm
dimmable via optional controller
power input: 6,00 W
energy efficiency class [EEI] spectrum A ++ to E
730215 silver coloured | round WW 3000 K 330 lm EEI: A
730213 silver coloured | square WW 3000 K 340 lm EEI: A
1
CV 24 6 W COB LED Ra>80 25° 59 132,5 IP67
accessories
872041 power supply | 24V DC | 12 W | IP66
872618 power supply | 24V DC | 36 W | IP67
843022 RF single controller dimmable | 12 - 24V DC | max. 360 W
843336 DMX LED dimmer 2 dimmable | 12 - 24V DC
843010 DALI 4 channel PWM dimmer | 12 - 24V DC
suitable dimmers and controllers from page 692
suitable Weipu cable systems from page 772
FORNAC
stainless steel
dimensions H x Ø: 80 x 55 mm
asymmetric
dimmable via optional controller
power input: 2,70 W
energy efficiency class [EEI] spectrum A ++ to E
730447 silver coloured | polished WW 3000 K 110 lm EEI: A
1
CV 24 2,70 W LED Ra>80 45°/35° 48 97,25 IP67
accessories
872041 power supply | 24V DC | 12 W | IP66
872618 power supply | 24V DC | 36 W | IP67
843022 RF single controller dimmable | 12 - 24V DC | max. 360 W
843336 DMX LED dimmer 2 dimmable | 12 - 24V DC
843010 DALI 4 channel PWM dimmer | 12 - 24V DC
suitable dimmers and controllers from page 692
suitable Weipu cable systems from page 772
456 OUTDOOR LAMPS | ground built-in lamps
