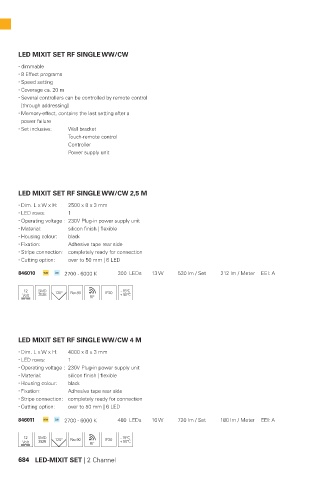

Page 685 - Deko-Light Light Impressions 2019-20
P. 685
LED MIXIT SET RF SINGLE WW/CW
dimmable
8 Effect programs
Speed setting
Coverage ca. 20 m
Several controllers can be controlled by remote control
[through addressing]
Memory-effect, contains the last setting after a
power failure
Set inclusive: Wall bracket
Touch-remote control
Controller
Power supply unit
LED MIXIT SET RF SINGLE WW/CW 2,5 M
Dim. L x W x H: 2500 x 8 x 3 mm
LED rows: 1
Operating voltage : 230V Plug-in power supply unit
Material: silicon finish | flexible
Housing colour: black
Fixation: Adhesive tape rear side
Stripe connection: completely ready for connection
Cutting option: over to 50 mm | 6 LED
846010 2700 - 6000 K 300 LEDs 13 W 530 lm / Set 212 lm / Meter EEI: A
12 SMD 120° Ra>90 IP20 - 15°C
3528 + 50°C
LED MIXIT SET RF SINGLE WW/CW 4 M
Dim. L x W x H: 4000 x 8 x 3 mm
LED rows: 1
Operating voltage : 230V Plug-in power supply unit
Material: silicon finish | flexible
Housing colour: black
Fixation: Adhesive tape rear side
Stripe connection: completely ready for connection
Cutting option: over to 50 mm | 6 LED
846011 2700 - 6000 K 480 LEDs 16 W 720 lm / Set 180 lm / Meter EEI: A
12 SMD - 15°C
3528 120° Ra>90 IP20 + 50°C
684 LED-MIXIT SET | 2 Channel
