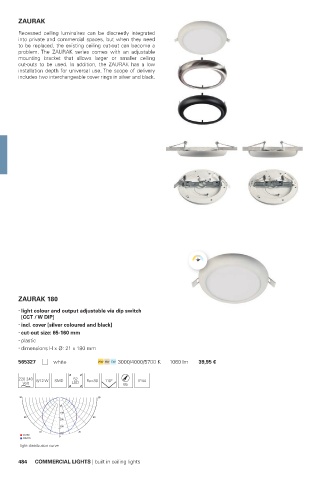

Page 486 - Deko-light Catalogue 2022
P. 486
ZAURAK
Recessed ceiling luminaires can be discreetly integrated
into private and commercial spaces, but when they need
to be replaced, the existing ceiling cut-out can become a
problem. The ZAURAK series comes with an adjustable
mounting bracket that allows larger or smaller ceiling
cut-outs to be used. In addition, the ZAURAK has a low
installation depth for universal use. The scope of delivery
includes two interchangeable cover rings in silver and black.
ZAURAK 180
light colour and output adjustable via dip switch
[CCT / W DIP]
incl. cover [silver coloured and black]
cut-out size: 65-160 mm
plastic
dimensions H x Ø: 21 x 180 mm
565327 white WW NW CW 3000/4000/5700 K 1060 lm 39,95 €
220-240 8/12 W SMD LED Ra>80 110° 65 IP44
52
90 90
25
100
60 60
200
300
30 30
C0-180 0 359
C90-270
light distribution curve
484 COMMERCIAL LIGHTS | built in ceiling lights
