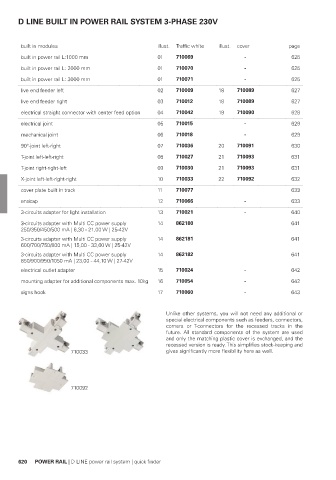

D LINE BUILT IN POWER RAIL SYSTEM 3-PHASE 230V

built in modules illust. Traffic white illust. cover page
built in power rail L:1000 mm 01 710069 - 625
built in power rail L: 2000 mm 01 710070 - 625

built in power rail L: 3000 mm 01 710071 - 625
live end feeder left 02 710009 18 710089 627
live end feeder right 03 710012 18 710089 627
electrical straight connector with center feed option 04 710042 19 710090 628
electrical joint 05 710015 - 629
mechanical joint 06 710018 - 629
90°-joint left-right 07 710036 20 710091 630

T-joint left-left-right 08 710027 21 710093 631
T-joint right-right-left 09 710030 21 710093 631
X-joint left-left-right-right 10 710033 22 710092 632
cover plate built in track 11 710077 633
endcap 12 710066 - 633
3-circuits adapter for light installation 13 710021 - 640
3-circuits adapter with Multi CC power supply 14 862180 641
250/350/450/500 mA | 6,30 - 21,00 W | 25-42V
3-circuits adapter with Multi CC power supply 14 862181 641
600/700/750/800 mA | 15,00 - 33,60 W | 25-42V
3-circuits adapter with Multi CC power supply 14 862182 641
850/900/950/1050 mA | 23,00 - 44,10 W | 27-42V
electrical outlet adapter 15 710024 - 642
mounting adapter for additional components max. 10kg 16 710054 - 642

signs hook 17 710060 - 643

Unlike other systems, you will not need any additional or
special electrical components such as feeders, connectors,
corners or T-connectors for the recessed tracks in the
future. All standard components of the system are used
and only the matching plastic cover is exchanged, and the
recessed version is ready. This simplifies stock-keeping and
710033 gives significantly more flexibility here as well.

710092
