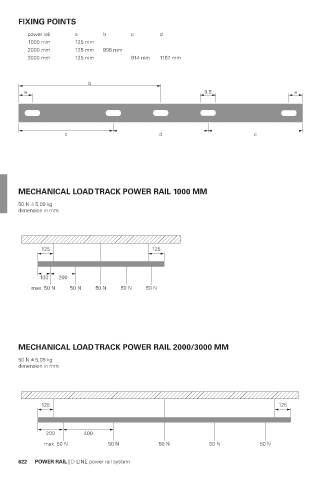

FIXING POINTS
power rail a b c d
1000 mm 125 mm
2000 mm 125 mm 998 mm
3000 mm 125 mm 914 mm 1167 mm
b
a 9,5 a
c d c
MECHANICAL LOAD TRACK POWER RAIL 1000 MM
50 N = 5,09 kg
^
dimension in mm
125 125
100 200
max. 50 N 50 N 50 N 50 N 50 N
MECHANICAL LOAD TRACK POWER RAIL 2000/3000 MM
50 N = 5,09 kg
^
dimension in mm
125 125
200 400
max. 50 N 50 N 50 N 50 N 50 N
