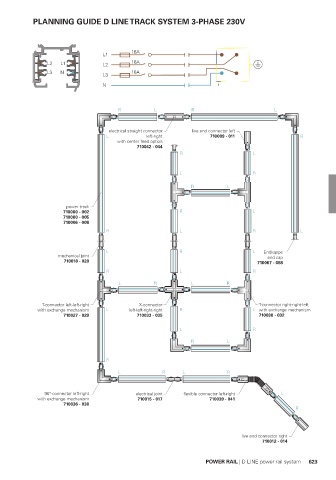

PLANNING GUIDE D LINE TRACK SYSTEM 3-PHASE 230V

16A
L1
L2 L1 L2 16A
L3 N L3 16A

N

R L R L

electrical straight connector live end connector left
L left-right 710009 - 011 R
with center feed option
710042 - 044
R L

L R
R L

power track
710000 - 002 R L
710000 - 005
710006 - 008
R L R L

L R L Endkappe
mechanical joint end cap
710018 - 020 710067 - 068
R L R
L R L R

T-connector left-left-right X-connector T-connector right-right-left
with exchange mechanism L left-left-right-right R L with exchange mechanism
710027 - 029 710033 - 035 710030 - 032

L R
R L

R
L R L R

90°-connector left-right electrical joint flexible connector left-right L
with exchange mechanism 710015 - 017 710039 - 041
710036 - 038
R

live end connector right
710012 - 014

POWER RAIL | D LINE power rail system 623
