Page 860 - Deko-light Catalogue 2022
P. 860

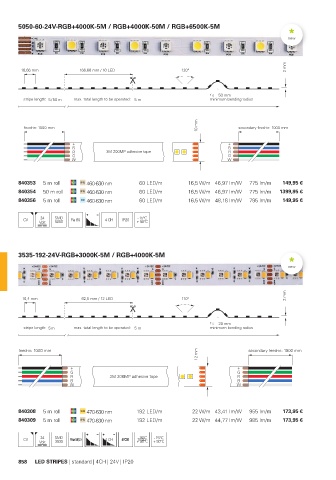

5050-60-24V-RGB+4000K-5M / RGB+4000K-50M / RGB+6500K-5M
new
2 mm
16,66 mm 166,66 mm / 10 LED 120°
r 50 mm
stripe length: 5 / 50 m max. total length to be operated: 5 m minimum bending radius
10 mm
feed-in: 1000 mm secondary feed-in: 1000 mm
840353 5 m roll 460-630 nm 60 LED/m 16,5 W/m 46,97 lm/W 775 lm/m 149,95 €
840354 50 m roll 460-630 nm 60 LED/m 16,5 W/m 46,97 lm/W 775 lm/m 1399,95 €
840356 5 m roll 460-630 nm 60 LED/m 16,5 W/m 48,18 lm/W 795 lm/m 149,95 €
- 15°C
CV 24 SMD Ra 80 4 CH IP20 + 50°C
5050
3535-192-24V-RGB+3000K-5M / RGB+4000K-5M
new
2 mm
10,4 mm 62,5 mm / 12 LED 110°
r 20 mm
stripe length: 5 m max. total length to be operated: 5 m minimum bending radius
12 mm
feed-in: 1000 mm secondary feed-in: 1000 mm
840308 5 m roll 470-630 nm 192 LED/m 22 W/m 43,41 lm/W 955 lm/m 173,95 €
840309 5 m roll 470-630 nm 192 LED/m 22 W/m 44,77 lm/W 985 lm/m 173,95 €
24
- 15°C
- 15°C
SMD
CV 24 SMD Ra 95,9Ra 90 Ra 96 4 CH 4 CHIP20 + 50°C + 50°C
IP20
3535
3535
858 LED STRIPES | standard | 4CH | 24V | IP20
