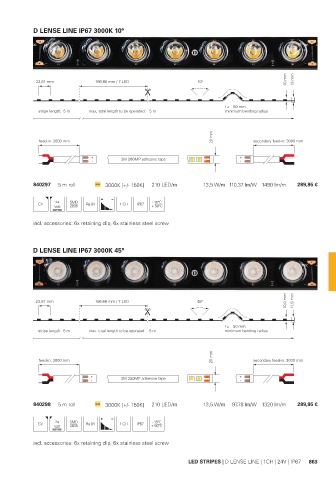

Page 865 - Deko-light Catalogue 2022
P. 865
D LENSE LINE IP67 3000K 10°
10 mm
23,81 mm 166,66 mm / 7 LED 10° 13 mm
r 50 mm
stripe length: 5 m max. total length to be operated: 5 m minimum bending radius
20 mm
feed-in: 3000 mm secondary feed-in: 3000 mm
840297 5 m roll 3000K [+/- 150K] 210 LED/m 13,5 W/m 110,37 lm/W 1490 lm/m 289,95 €
- 15°C
CV 24 SMD Ra 94 1 CH IP67 + 50°C
2835
incl. accessories: 6x retaining clip, 6x stainless steel screw
D LENSE LINE IP67 3000K 45°
23,81 mm 166,66 mm / 7 LED 45° 10,0 mm 11,6 mm
r 50 mm
stripe length: 5 m max. total length to be operated: 5 m minimum bending radius
20 mm
feed-in: 3000 mm secondary feed-in: 3000 mm
840298 5 m roll 3000K [+/- 150K] 210 LED/m 13,5 W/m 97,78 lm/W 1320 lm/m 289,95 €
- 15°C
CV 24 SMD Ra 94 1 CH IP67 + 50°C
2835
incl. accessories: 6x retaining clip, 6x stainless steel screw
LED STRIPES | D LENSE LINE | 1CH | 24V | IP67 863
