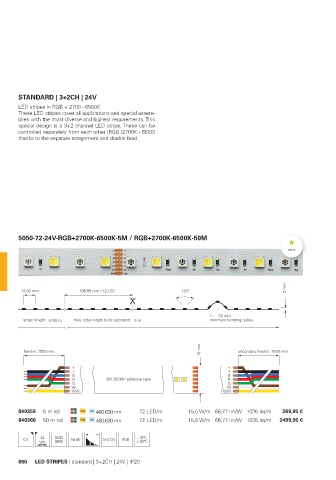

Page 862 - Deko-light Catalogue 2022
P. 862
STANDARD | 3+2CH | 24V
LED stripes in RGB + 2700 - 6500K
These LED stripes cover all applications and special assem-
blies with the most diverse and highest requirements. This
special design is a 3+2 channel LED stripe. These can be
controlled separately from each other [RGB /2700K - 6500]
thanks to the separate assignment and double feed.
5050-72-24V-RGB+2700K-6500K-5M / RGB+2700K-6500K-50M
new
2 mm
13,89 mm 166,66 mm / 12 LED 120°
r 50 mm
stripe length: 5 / 50 m max. total length to be operated: 5 m minimum bending radius
15 mm
feed-in: 1000 mm secondary feed-in: 1000 mm
840359 5 m roll 460-630 nm 72 LED/m 15,5 W/m 66,77 lm/W 1035 lm/m 269,95 €
840360 50 m roll 460-630 nm 72 LED/m 15,5 W/m 66,77 lm/W 1035 lm/m 2499,95 €
- 15°C
CV 24 SMD Ra 80 3+2 CH IP20 + 50°C
5050
860 LED STRIPES | standard | 3+2CH | 24V | IP20
