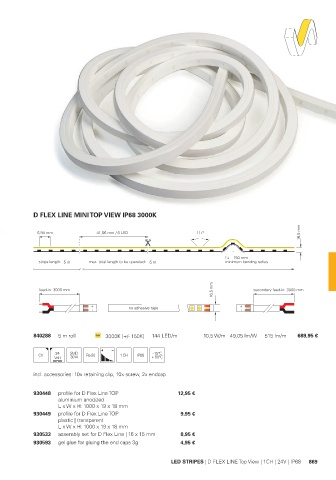

Page 871 - Deko-light Catalogue 2022
P. 871

D FLEX LINE MINI TOP VIEW IP68 3000K

                                                                                             16,5 mm
            6,94 mm            41,66 mm / 6 LED              117°



                                                                      r    150 mm
             stripe length: 5 m  max. total length to be operated:  5 m  minimum bending radius


                                                                  16,5 mm
             feed-in: 3000 mm                                                  secondary feed-in: 3000 mm







           840288  5 m roll       3000K [+/- 150K]  144 LED/m  10,5 W/m 49,05 lm/W  515 lm/m  689,95 €

                  24  SMD                       - 15°C
             CV        3014  Ra 80    1 CH  IP68  + 50°C

           incl. accessories: 10x retaining clip, 10x screw, 2x endcap


           930448  profile for D Flex Line TOP           12,95 €
                   aluminium anodized
                   L x W x H: 1000 x 19 x 18 mm
           930449  profile for D Flex Line TOP           9,95 €
                   plastic | transparent
                   L x W x H: 1000 x 19 x 18 mm
           930533  assembly set for D Flex Line | 16 x 15 mm  8,95 €
           930593  gel glue for gluing the end caps 3g  4,95 €


                                                      LED STRIPES | D FLEX LINE Top View | 1CH | 24V | IP68  869
