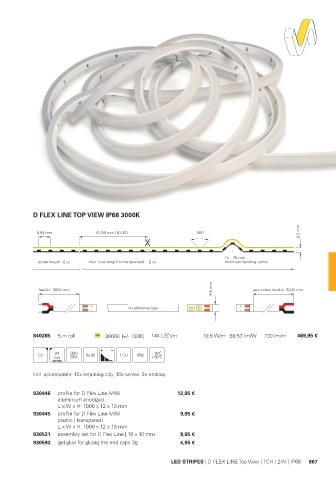

Page 869 - Deko-light Catalogue 2022
P. 869

D FLEX LINE TOP VIEW IP68 3000K

                                                                                             9,5 mm
            6,94 mm            41,66 mm / 6 LED              180°



                                                                      r    75 mm
             stripe length: 5 m  max. total length to be operated:  5 m  minimum bending radius


                                                                  9,5 mm
             feed-in: 3000 mm                                                  secondary feed-in: 3000 mm







           840285  5 m roll       3000K [+/- 150K]  144 LED/m  10,5 W/m 69,52 lm/W  730 lm/m  469,95 €

                  24  SMD                       - 15°C
             CV        3014  Ra 80    1 CH  IP68  + 50°C

           incl. accessories: 10x retaining clip, 10x screw, 2x endcap


           930446  profile for D Flex Line MINI         12,95 €
                   aluminium anodized
                   L x W x H: 1000 x 12 x 13 mm
           930445  profile for D Flex Line MINI          9,95 €
                   plastic | transparent
                   L x W x H: 1000 x 12 x 13 mm
           930531  assembly set for D Flex Line | 10 x 10 mm  8,95 €
           930593  gel glue for gluing the end caps 3g  4,95 €


                                                      LED STRIPES | D FLEX LINE Top View | 1CH | 24V | IP68    867
